M12 board lenses

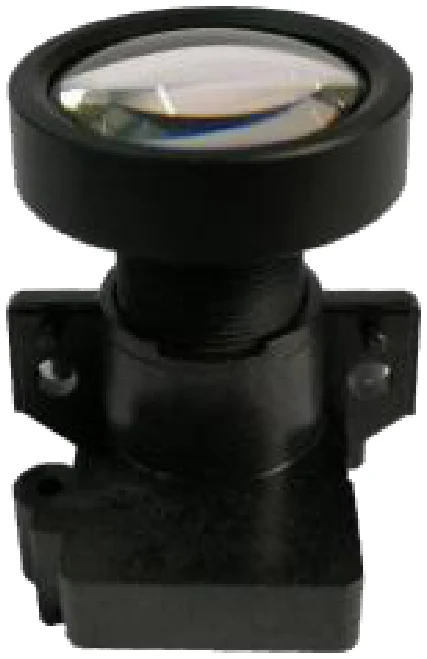

4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens (LS-SND4520IRF-8M)
Model LS-SND4520IRF-8M
4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens. 8 megapixel 4.5 mm M12 lens for 1/1.8" sensors with -14.2% optical distortion, for recognition, scanning and surveillance. At a glance: focal length 4.5mm; format 1/1.8"; resolution 8.0 Megapixel; aperture F2.0 Fixed iris; mount M12.
Features
- 8 megapixel high definition
- Large 1/1.8" format
- Optical distortion -14.2%
Specifications
| Model | LS-SND4520IRF-8M |
|---|---|
| Resolution | 8.0 Megapixel |
| Format | 1/1.8" |
| Focal length | 4.5mm |
| Aperture | F2.0 Fixed iris |
| Angle of view (1/1.8", DxHxV) | 98.5 x 90.2 x 54.8 deg |
| Distortion | 14.2% |
| M.O.D. | 0.5m |
| Back focal length (optical) | 5.9mm |
| CRA | <10.4° |
| Size | dia. 24 x 24.8mm |
| Mount | M12 |
| Weight | 15g |
| Shipping weight (estimated) | 0.12 kg |
Applications
- Recognition
- Scanning
- Surveillance
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M12 Board lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HN-8036-4K | 4 mm, 1/2.5", 8 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-HN-8060-4K | 8 mm, 1/2.5", 8 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-HN-PB60501 | 5 mm, 1/1.8", 6 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-PD013 | 1.9 mm, 1/4", 1.3 MP, M6-mount | $39.00 | 3 in stock | View |
| LS-PD028 | 4.05 mm, 1/3", 2 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-PD030 | 2.85 mm, 1/2.9", 2 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-PD033 | 2.94 mm, 1/2.7", 2 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-PD046 | 2.67 mm, 1/2.7", 2 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-S12BF1620IR-5M | 16 mm, 1/2", 5 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-S18BF0418IR-5M | 4 mm, 1/1.8", 5 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-S18BF1218IR-5M | 12 mm, 1/1.8", 5 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-S18BF2920IR-5M | 2.95 mm, 1/1.8", 5 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-SBF0622IRF-3M | 6 mm, 1/2.7", 3 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-SBF0824IRF-3M | 8 mm, 1/2.7", 3 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-SBF2322IR-4M | 2.3 mm, 1/3", 4 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-SBF2618IR-3M | 2.6 mm, 1/2.7", 3 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-SBF2918IR-3M | 2.98 mm, 1/2.9", 3 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-SBF60501-6M | 5 mm, 1/1.8", 6 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-SBV2812ICR-3M | 2.8-12 mm, 1/2.7", 3 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-SBV2812ICRM-3M | 2.8-12 mm, 1/2.7", 3 MP | Price on request | 2 in stock | View |
| LS-SDL1720IR-2M | 1.78 mm, 1/2.7", 2 MP, M12-mount | $39.00 | 3 in stock | View |
| LS-SDL1720IR-2M-12 | 1.78 mm, 1/2.7", 2 MP, M12-mount | $39.00 | 2 in stock | View |
| LS-SDL1720IR-2M-17 | 1.78 mm, 1/2.7", 2 MP, M12-mount | $39.00 | 5 in stock | View |
| LS-SDV2825-16MC | 2.8 mm, 1/2.6", 16 MP, M12-mount | $39.00 | 5 in stock | View |
