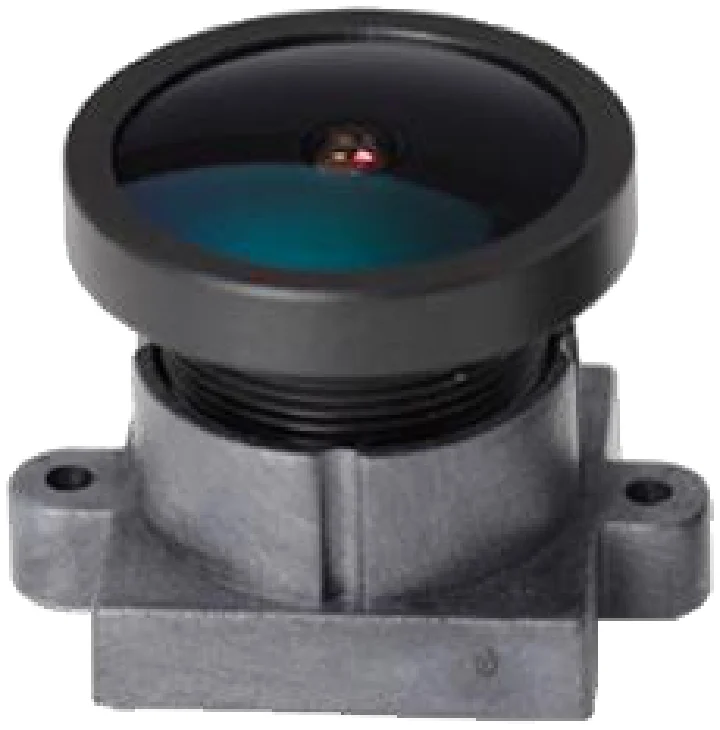

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-SBF2918IR-3M)

M12 board lenses

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-SBF2918IR-3M)

Model LS-SBF2918IR-3M

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens. 3.0 megapixel 2.98 mm M12 lens for 1/2.9" sensors with a large F1.8 aperture, for CCTV, smart home and automotive use. At a glance: focal length 2.98mm; format 1/2.9" (Max image dia. 6.7); resolution 3.0 Megapixel; aperture F1.8 Fixed Iris; mount M12.

$39.00 USDIn stock · 2 available

Inventory updated Oct 15, 2026

0.11 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-SBF2918IR-3M

Features

  • 3.0 megapixel
  • 1/2.9" sensor format
  • M12 mount
  • Large aperture F1.8

Specifications

ModelLS-SBF2918IR-3M
Resolution3.0 Megapixel
IR correctionIR
Format1/2.9" (Max image dia. 6.7)
Focal length2.98mm
ApertureF1.8 Fixed Iris
Angle of view (1/2.9", DxHxV)140 x 114 x 60 deg
Distortion16.2%
M.O.D.0.2m
Sizedia. 17.5 x 12.2mm
Total track length (TTL)16.2mm
MountM12
Weight6g
Shipping weight (estimated)0.11 kg

Applications

  • CCTV
  • Smart home
  • Automotive
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the M12 Board lenses series

ModelSizePriceAvailability
LS-HN-8036-4K4 mm, 1/2.5", 8 MP, M12-mount $39.00 5 in stockView
LS-HN-8060-4K8 mm, 1/2.5", 8 MP, M12-mount $39.00 5 in stockView
LS-HN-PB605015 mm, 1/1.8", 6 MP, M12-mount $39.00 2 in stockView
LS-PD0131.9 mm, 1/4", 1.3 MP, M6-mount $39.00 3 in stockView
LS-PD0284.05 mm, 1/3", 2 MP, M12-mount $39.00 3 in stockView
LS-PD0302.85 mm, 1/2.9", 2 MP, M12-mount $39.00 5 in stockView
LS-PD0332.94 mm, 1/2.7", 2 MP, M12-mount $39.00 3 in stockView
LS-PD0462.67 mm, 1/2.7", 2 MP, M12-mount $39.00 5 in stockView
LS-S12BF1620IR-5M16 mm, 1/2", 5 MP, M12-mount $39.00 3 in stockView
LS-S18BF0418IR-5M4 mm, 1/1.8", 5 MP, M12-mount $39.00 5 in stockView
LS-S18BF1218IR-5M12 mm, 1/1.8", 5 MP, M12-mount $39.00 5 in stockView
LS-S18BF2920IR-5M2.95 mm, 1/1.8", 5 MP, M12-mount $39.00 5 in stockView
LS-SBF0622IRF-3M6 mm, 1/2.7", 3 MP, M12-mount $39.00 3 in stockView
LS-SBF0824IRF-3M8 mm, 1/2.7", 3 MP, M12-mount $39.00 2 in stockView
LS-SBF2322IR-4M2.3 mm, 1/3", 4 MP, M12-mount $39.00 3 in stockView
LS-SBF2618IR-3M2.6 mm, 1/2.7", 3 MP, M12-mount $39.00 3 in stockView
LS-SBF60501-6M5 mm, 1/1.8", 6 MP, M12-mount $39.00 2 in stockView
LS-SBV2812ICR-3M2.8-12 mm, 1/2.7", 3 MP, M12-mount $39.00 2 in stockView
LS-SBV2812ICRM-3M2.8-12 mm, 1/2.7", 3 MP Price on request 2 in stockView
LS-SDL1720IR-2M1.78 mm, 1/2.7", 2 MP, M12-mount $39.00 3 in stockView
LS-SDL1720IR-2M-121.78 mm, 1/2.7", 2 MP, M12-mount $39.00 2 in stockView
LS-SDL1720IR-2M-171.78 mm, 1/2.7", 2 MP, M12-mount $39.00 5 in stockView
LS-SDV2825-16MC2.8 mm, 1/2.6", 16 MP, M12-mount $39.00 5 in stockView
LS-SND4520IRF-8M4.5 mm, 1/1.8", 8 MP, M12-mount $39.00 3 in stockView

See all 52 models in the M12 Board lenses series
