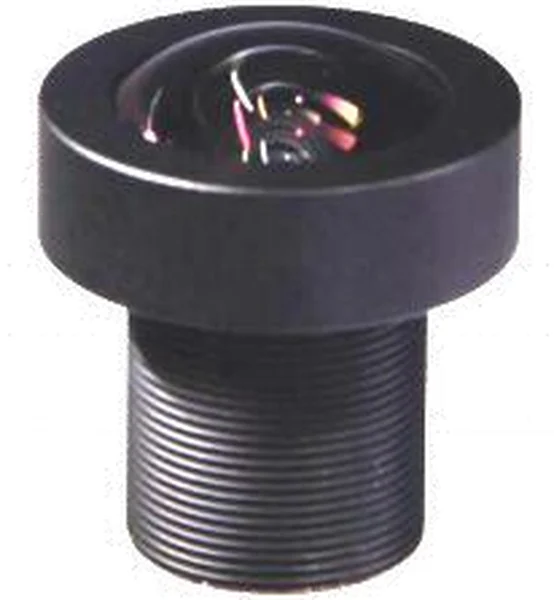

3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens (LS-SND3328-16M)
Model LS-SND3328-16M
3.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 Lens. 3.3 mm F2.8 IR M12 lens for 1/2.3" 16 MP sensors, distortion <1%, IP67. At a glance: focal length 3.3 mm; format 1/2.3"; resolution 16 Megapixel; aperture F2.8 Fixed Iris; mount M12.
Specifications
| Model | LS-SND3328-16M |
|---|---|
| Resolution | 16 Megapixel |
| IR | IR |
| Format | 1/2.3" |
| Image circle | Max dia. 8.0 |
| Focal length | 3.3 mm |
| Aperture | F2.8 Fixed Iris |
| Angle of view (1/2.3") | 99.5 x 85 x 70 deg |
| Angle of view (1/2.5") | 94.5 x 85 x 56 deg |
| M.O.D. | 0.1 m |
| Size | dia. 18.8 x 20.67 mm |
| Total track length (TTL) | 24 mm |
| Distortion | <1% |
| Waterproof | IP67 |
| Mount | M12 |
| Weight | 20 g |
| Shipping weight (estimated) | 0.13 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Low-Distortion M12 lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SND5518IR-3ML | 5.5 mm, 1/1.8", 3 MP, M12-mount | $49.00 | 2 in stock | View |
| LS-SND6668-MF | 6.6 mm, 1/2.7", 1.3 MP, M10-mount | $49.00 | 4 in stock | View |
| LS-SIR1428-12MF | 14 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SIR2128-12M | 21 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SIR2228-12MF | 22 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND0856-12M | 8 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND1256-12M | 12 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND1329-14M | 4.2 mm, 1/2.3", 14 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND1428F-12M | 14 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND1656-12M | 16 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND20618F-8M | 1.9 mm, 1/2.8", 8 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2228F-12M | 22 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND2556-12M | 25 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2623-8M | 2.8 mm, 1/2.5", 8 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND2625-12M | 2.8 mm, 1/2.5", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2631SD-12M | 2.7 mm, 1/2.3", 12 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND2636A1SD-8M | 1.8 mm, 1/2.7", 8 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2639A1SD-8M-H | 2.2 mm, 1/2.7", 8 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND3020DS-10M | 3 mm, 1/1.7", 10 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND3429-8M | 2.7 mm, 1/3", 8 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND3528-16M | 3.2 mm, 1/2.5", 16 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND3920-12M | 3.6 mm, 1/2.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND5425IR-10ML | 5.4 mm, 1/2.3", 10 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND7820F-8M | 7.8 mm, 1/1.8", 8 MP, M12-mount | $59.00 | 2 in stock | View |
