M12 board lenses

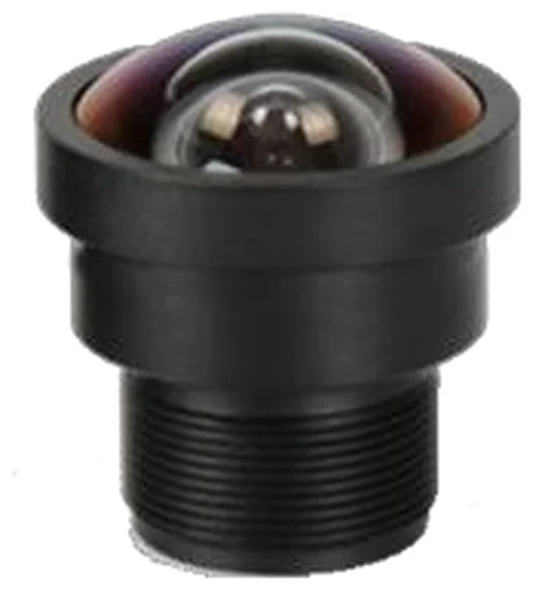

2.2 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 Lens (LS-SND2639A1SD-8M-H)
Model LS-SND2639A1SD-8M-H
2.2 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 Lens. 2.2 mm F2.2 M12 lens for 1/2.7" 8 MP sensors, IR-cut 650 nm, supplied with a holder (20 mm hole distance). At a glance: focal length 2.2 mm; format 1/2.7"; resolution 8.0 Megapixel; aperture F2.2 Fixed iris; mount M12.
Features
- 8 Megapixel
- M12 mount with holder, 20 mm hole distance
Specifications
| Model | LS-SND2639A1SD-8M-H |
|---|---|
| Resolution | 8.0 Megapixel |
| Format | 1/2.7" |
| Focal length | 2.2 mm |
| Max image circle | dia. 6.8 mm |
| Aperture | F2.2 Fixed iris |
| Angle of view (1/2.7") | 120 x 110 x 74 deg |
| Angle of view (1/2.8") | 117 x 108 x 72 deg |
| IR filter | IR CUT 650nm |
| Distortion | <-4.5% |
| Back focal length | 4.52 mm |
| CRA | <11° |
| Relative illumination | >62% |
| Size | dia. 17 x 21.08 mm |
| Total track length (TTL) | 24.5 mm |
| Mount | M12 |
| Weight | 30 g |
| Holder | 20 mm hole distance |
| Shipping weight (estimated) | 0.14 kg |
Applications
- Recognition, scanning, surveillance
