50 mm, 2/3", 10 MP, C-mount Machine Vision Lens (LS-SMV5028CL-10M)

Lenses

50 mm, 2/3", 10 MP, C-mount Machine Vision Lens (LS-SMV5028CL-10M)

Model LS-SMV5028CL-10M

50 mm, 2/3", 10 MP, C-mount Machine Vision Lens. Compact (<35 mm diameter) 50 mm F2.8 manual-iris machine vision lens for 2/3" sensors, rated 10 megapixel (4K, 1080P), covering 2/3", 1/1.8" and 1/2" cameras. For automation, inspection, 3D, SMT and AOI. At a glance: focal length 50 mm; format 2/3"; resolution 10 Megapixel; aperture F2.8 Manual iris; mount C.

$129.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.26 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 10 megapixel cover all 4K & 1080P
  • Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion: <1% low distortion use machine vision
  • Compact size: <35mm diameter

Specifications

ModelLS-SMV5028CL-10M
Resolution10 Megapixel
Format2/3"
Focal length50 mm
Max image circledia. 11 mm
ApertureF2.8 Manual iris
Angle of view (2/3")12.6 x 10 x 7.5 deg
M.O.D.0.2 m
Distortion±1%
Sizedia. 35 x 52.6 mm
Filter sizeM30.5 x P0.5
MountC
Weight115 g
Shipping weight (estimated)0.26 kg

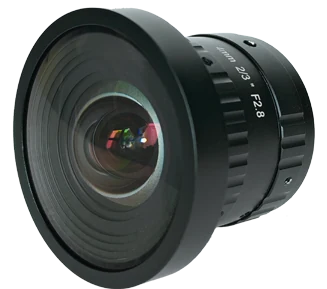

Photo shows a representative model of this series; see the specifications for this model.

Applications

  • Automatic vision
  • Medical
  • Life science
  • Inspection
  • SMT
  • AOI
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the 2/3" machine vision lenses series

ModelSizePriceAvailability
LS-SMV1614-5MC16 mm, 2/3", 5 MP, C-mount $89.00 5 in stockView
LS-SMV1614-8M16 mm, 2/3", 8 MP, C-mount $89.00 5 in stockView
LS-SMV1618-10M16 mm, 2/3", 10 MP, C-mount $89.00 4 in stockView
LS-SMV1620CL-10M16 mm, 2/3", 10 MP, C-mount $89.00 5 in stockView
LS-SMV1628G-8M16 mm, 2/3", 8 MP, C-mount $89.00 4 in stockView
LS-SMV2514-5M25 mm, 2/3", 5 MP, C-mount $99.00 3 in stockView
LS-SMV2514-5MC25 mm, 2/3", 5 MP, C-mount $99.00 5 in stockView
LS-SMV2514-8M25 mm, 2/3", 8 MP, C-mount $99.00 3 in stockView
LS-SMV2518-10M25 mm, 2/3", 10 MP, C-mount $99.00 5 in stockView
LS-SMV2520CL-10M25 mm, 2/3", 10 MP, C-mount $99.00 3 in stockView
LS-SMV2528G-8M25 mm, 2/3", 8 MP, C-mount $99.00 3 in stockView
LS-SMV3514-5M35 mm, 2/3", 5 MP, C-mount $109.00 5 in stockView
LS-SMV3514-5MC35 mm, 2/3", 5 MP, C-mount $109.00 2 in stockView
LS-SMV3514-8M35 mm, 2/3", 8 MP, C-mount $109.00 4 in stockView
LS-SMV3520-10M35 mm, 2/3", 10 MP, C-mount $109.00 3 in stockView
LS-SMV3520CL-10M35 mm, 2/3", 10 MP, C-mount $109.00 5 in stockView
LS-SMV3528G-8M35 mm, 2/3", 8 MP, C-mount $109.00 5 in stockView
LS-SMV5014-5M50 mm, 2/3", 5 MP, C-mount $129.00 2 in stockView
LS-SMV5014-5MC50 mm, 2/3", 5 MP, C-mount $129.00 5 in stockView
LS-SMV5028-10M50 mm, 2/3", 10 MP, C-mount $129.00 5 in stockView
LS-SMV5028G-8M50 mm, 2/3", 8 MP, C-mount $129.00 4 in stockView
LS-SMV7520-5M75 mm, 2/3", 5 MP, C-mount $149.00 3 in stockView
LS-SMV7528-2M75 mm, 2/3", 2 MP, C-mount $149.00 2 in stockView
LS-SMV10028-2M100 mm, 2/3", 2 MP, C-mount $179.00 3 in stockView

See all 42 models in the 2/3" machine vision lenses series
