35 mm, 2/3", 8 MP, C-mount Machine Vision Lens (LS-SMV3514-8M)

Machine vision lenses

35 mm, 2/3", 8 MP, C-mount Machine Vision Lens (LS-SMV3514-8M)

Model LS-SMV3514-8M

35 mm, 2/3", 8 MP, C-mount Machine Vision Lens. 8.0 megapixel 35 mm machine vision lens with a 2/3" format covering 2/3", 1/1.8" and 1/2" cameras. F1.4 aperture and 0.2% low distortion. At a glance: focal length 35 mm; format 2/3"; resolution 8.0 Megapixel; aperture F1.4 Manual Iris; mount C.

$109.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.40 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 8.0 megapixel cover all 4K & 1080P
  • Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture: F1.4 big aperture makes imaging far better
  • Low distortion: 0.2% low distortion use machine vision ITS

Specifications

ModelLS-SMV3514-8M
Resolution8.0 Megapixel
Format2/3"
Focal length35 mm
ApertureF1.4 Manual Iris
Angle of view (2/3")14.2 x 10.8 deg
Angle of view (1/2")10.4 x 7.8 deg
M.O.D.0.1 m
Sizedia. 49 x 54.5
Distortion0.2%
MountC
Weight217 g
Shipping weight (estimated)0.40 kg

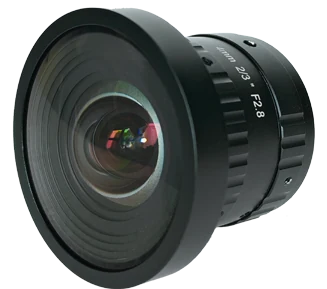

Photo shows a representative model of this series; see the specifications for this model.

Applications

  • Automation
  • Machine vision
  • Medical
  • Life science
  • ITS
  • SMT
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.
