Machine vision lenses

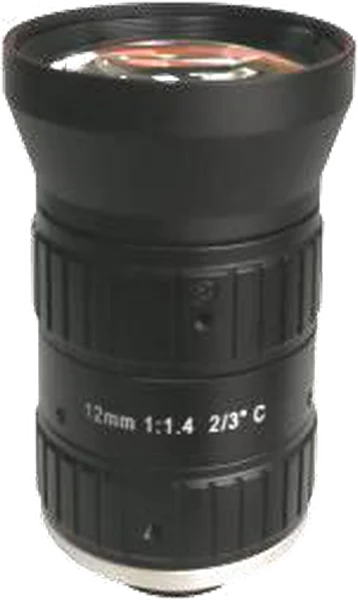

12 mm, 2/3", 5 MP, C-mount Machine Vision Lens (LS-SMV12J14-5M)
Model LS-SMV12J14-5M
12 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 2/3" format, 5 to 8 megapixel C-mount FA machine vision lenses with manual iris, 6 to 75 mm, from the section "2/3" 8.0~5.0 Megapixel FA Machine Vision Lenses". At a glance: focal length 12 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4 Manual iris; mount C.
Specifications
| Model | LS-SMV12J14-5M |
|---|---|
| Mount | C |
| Format | 2/3" |
| Resolution | 5.0 Megapixel |
| Focal length | 12 mm |
| Aperture | F1.4 Manual iris |
| Angle of view (2/3", DxHxV) | 51 x 41.3 x 31.3 deg |
| Angle of view (1/2", DxHxV) | 31.7 x 31 x 23 deg |
| Angle of view (1/2.7", DxHxV) | 31.3 x 25.3 x 19.1 deg |
| M.O.D. | 0.3 m |
| Distortion | 2.9% |
| Back focal length | 11.4 mm (in air) |
| Mechanical back focus | 9.75 mm~11.35 mm (in air) |
| CRA | ≤10.6° |
| Size | dia. 42 x 61.85~63.05 mm |
| Weight | 160 g |
| Notes | 30℃ +70℃ |
| Shipping weight (estimated) | 0.32 kg |
Applications
- Electronics
- SMT / AOI
- Automation
- Life sciences
- Public security
- Intelligent transportation (ITS)
