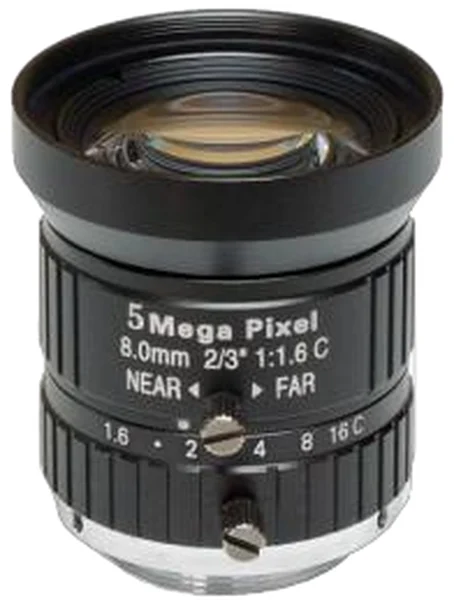

8 mm, 2/3", 5 MP, C-mount Machine Vision Lens (LS-SMV0816-5MS)
Model LS-SMV0816-5MS
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens. Economy 8 mm 2/3" 5 MP C-mount FA lens with F1.6 manual iris. At a glance: focal length 8.0 mm; format 2/3" (dia. 11); resolution 5.0 Megapixel; aperture F1.6 Manual iris; mount C.
Specifications
| Model | LS-SMV0816-5MS |
|---|---|
| Format | 2/3" (dia. 11) |
| Resolution | 5.0 Megapixel |
| Focal length | 8.0 mm |
| Aperture | F1.6 Manual iris |
| Angle of view (2/3") | 56.6 x 43.9 deg |
| Angle of view (1/1.8") | 47.4 x 36.3 deg |
| Angle of view (1/2") | 42.6 x 32.5 deg |
| M.O.D. | 0.15 m |
| Distortion | 0.75% |
| Filter thread | M37 x 0.5 |
| Size | dia. 39 x 41.5 mm |
| Mount | C |
| Weight | 100 g |
| Notes | 7G element |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 2/3" machine vision lenses series
