Area scan cameras

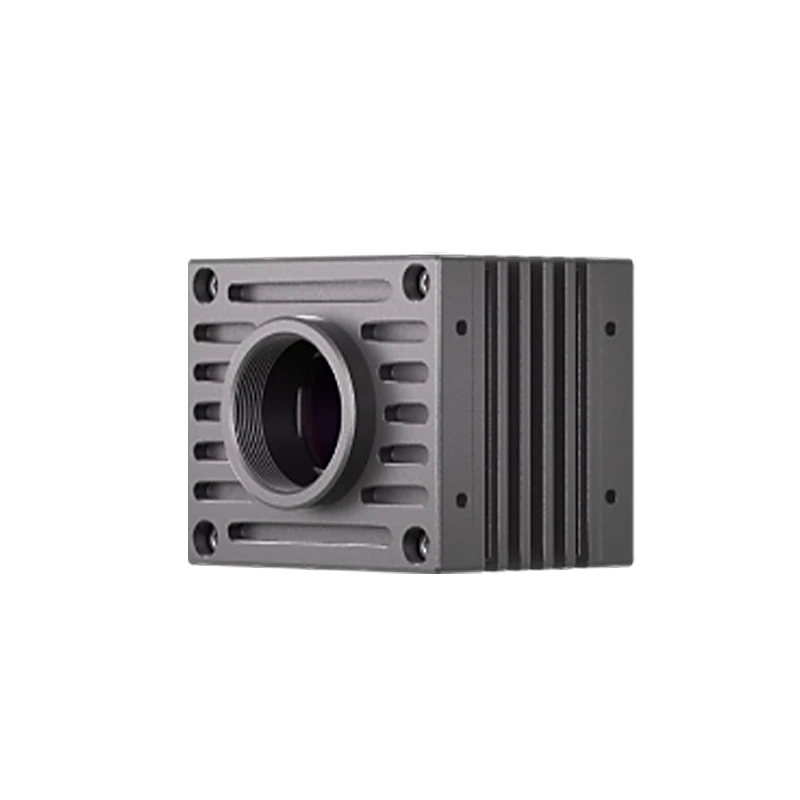

Microscope camera (RP / GP series), 21 MP, USB3, Color (LS-MV-2100UC22-RP)
Model LS-MV-2100UC22-RP
This series of Microscope USB3.0 area scan cameras includes color and monochrome,global and rolling shutter.Conforms to USB3.0 ultra-high speed communication protocol.Suitable for medical imaging,Microscopic imaging,low light imaging and other applications.
Features
- Large target surface,high pixel.
- High sensitivity,ultra low noise.
- Image is transparent,smooth and delicate.
- Multiple cameras working at the same time.
- Supports DirectShow and Twain interfaces.
Specifications
| Model | LS-MV-2100UC22-RP |
|---|---|
| Target size | 4/3" |
| Resolution | 5280*3952 |
| Pixel size | 3.45um |
| Shutter | Rolling |
| Frame rate | 22FPS |
| Data interface | USB3.0 |
| Lens Mount | C |
| Color/Mono | Color |
| Remark | Microscope |
| Camera Type | Microscope USB3.0 Camera |
| Sensor Type | Rolling Shutter |
| Resolution (product page) | 5280x3956 |
| Optical Size | 4/3" |
| Mono/Color | Color |
| Max Frame Rate | 20FPS |
| Gain | Gain:1-15times,step size:0.125times |
| Bit depth | 12bit |
| Exposure Time | 20us-10s |
| Picture size | 5280x3956 |
| Output Image Format | RAW8RAW16BMP24 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Support format | RAWBMPJPEGPNG |
| Power supply | USB 5V power supply |
| Typical Power Consumption | <2.5W |
| Lens Interface | C-Mount |
| Dimension | 48mm×56mm×43.9mm |
| Weight | <220g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0 Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |
| Mono / colour | Color |
| Voltage | USB 5V power supply |
