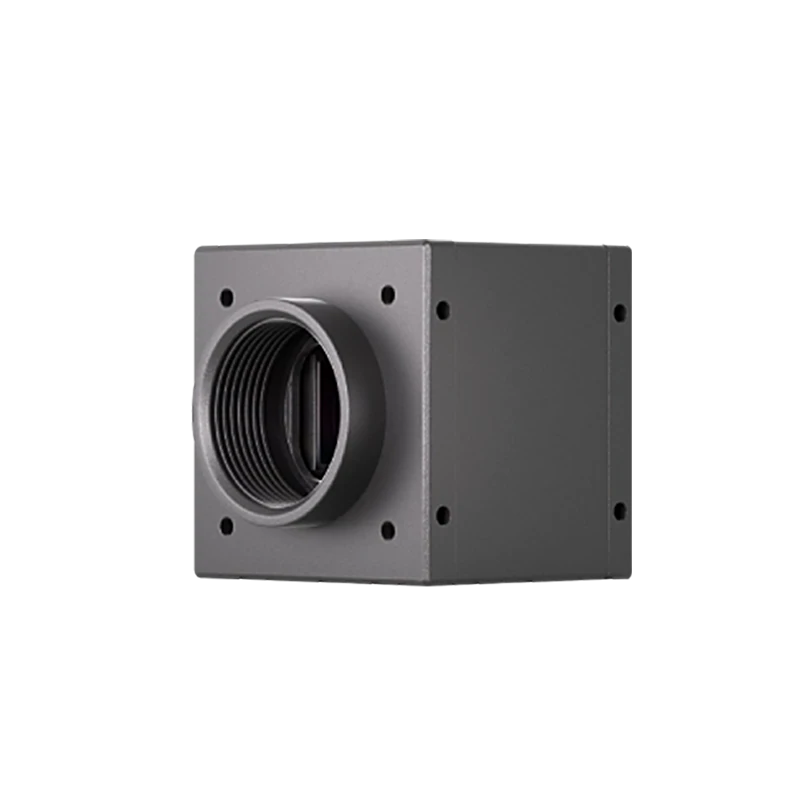

Microscope camera (RP / GP series), 20 MP, USB3, Color (LS-MV-2000UC22-RP)
Model LS-MV-2000UC22-RP
This series of Microscope USB3.0 area scan cameras includes color and monochrome,global and rolling shutter.Conforms to USB3.0 ultra-high speed communication protocol.Suitable for medical imaging,Microscopic imaging,low light imaging and other applications.
Features
- Large target surface,high pixel.
- High sensitivity,ultra low noise.
- Image is transparent,smooth and delicate.
- Multiple cameras working at the same time.
- Supports DirectShow and Twain interfaces.
Specifications
| Model | LS-MV-2000UC22-RP |
|---|---|
| Target size | 1" |
| Resolution | 5480*3648 |
| Pixel size | 2.4um |
| Shutter | Rolling |
| Frame rate | 22FPS |
| Data interface | USB3.0 |
| Lens Mount | C |
| Color/Mono | Color |
| Remark | Microscope |
| Camera Type | Microscope USB3.0 Camera |
| Sensor Type | Rolling Shutter |
| Resolution (product page) | 5480x3648 |
| Optical Size | 1" |
| Mono/Color | Color |
| Max Frame Rate | 22FPS |
| Gain | Gain:1-32times,step size:0.125times |
| Bit depth | 12bit |
| Exposure Time | 38us-60s |
| Spectralresponse | 390nm-650nm |
| Output Image Format | RAW8,RAW16,BMP24 |
| Trigger Mode | Software Trigger |
| Support format | RAWBMPJPEGPNG |
| Power supply | USB 5V power supply |
| Typical Power Consumption | <1.4W |
| Lens Interface | C-Mount |
| Dimension | 48mm×44mm×39mm |
| Weight | <220g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0 Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |
| Mono / colour | Color |
| Voltage | USB 5V power supply |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Microscope camera (RP / GP series) series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-MV-630UC71-RP | 6.3 MP, USB3, Color | 1.8 W | $269.00 | 5 in stock | View |
| LS-MV-1201UC37-RP | 12 MP, USB3, Color | 2 W | $379.00 | 5 in stock | View |
| LS-MV-2100UC22-RP | 21 MP, USB3, Color | 2.5 W | $569.00 | 3 in stock | View |
| LS-MV-520UM27-RP | 5.2 MP, USB3, Mono | $689.00 | 4 in stock | View | |
| LS-MV-2500UC/M17-GP | 26 MP, USB3, Color/Mono | $2,219.00 | 2 in stock | View | |
| LS-MV-2502UM17-GP | 26 MP, USB3, Mono | $2,219.00 | 2 in stock | View |
