Machine vision lenses

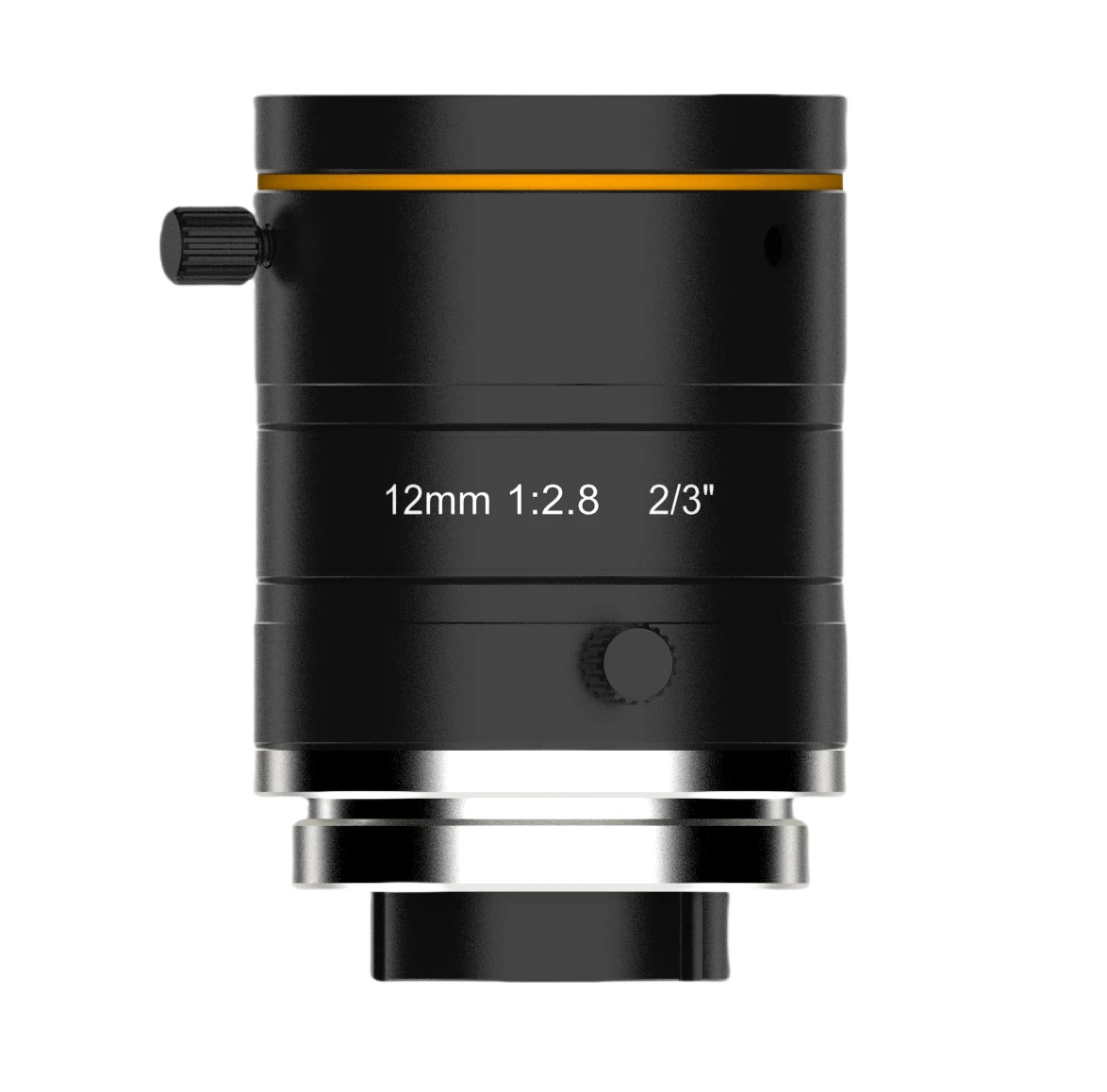

12mm, F2.8, 2/3", 8MP Lens, C-Mount (LS-MF1228M-8MPS)
Model LS-MF1228M-8MPS
12mm, F2.8, 2/3", 8MP Lens, C-Mount. High resolution with highly consistent sharpness across the image Low distortion and excellent relative illumination
Features
- High resolution with highly consistent sharpness across the image
- Low distortion and excellent relative illumination
- Excellent resolving power at all object distances
- Achromatic design for better imaging with color cameras
Specifications
| Model | LS-MF1228M-8MPS |
|---|---|
| Focal length | 12 mm |
| F-number | F2.8 ~ F16 |
| Image size | Φ11.0 mm(2/3'') |
| Distortion | -0.39% |
| Minimum object distance | 0.1 m |
| Field of view | D(11.01mm):49.08°; H(8.45mm):38.57°; V(7.07mm):32.61° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ29 mm × 34 mm |
| Weight | 38.5 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.15 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the MF-8MPS series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MF1628M-8MPS | $159.00 | 5 in stock | View | |
| LS-MF2528M-8MPS | $169.00 | 5 in stock | View | |
| LS-MF3528M-8MPS | $179.00 | 3 in stock | View | |
| LS-MF0824M-8MPS | $189.00 | 2 in stock | View | |
| LS-MF0624M-8MPS | $189.00 | 4 in stock | View |
