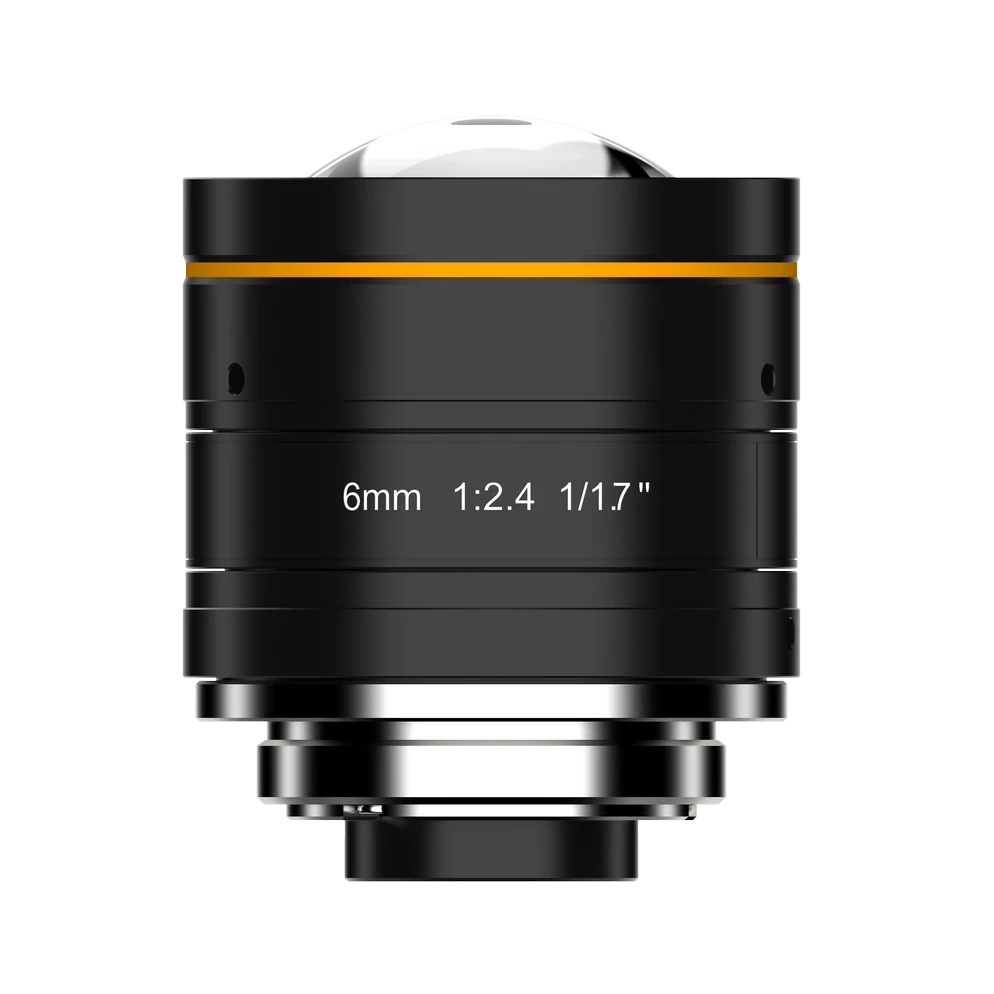

6mm, F2.4, 1/1.7", 8 MP, C-mount lens (LS-MF0624M-8MPS)
Model LS-MF0624M-8MPS
6mm, F2.4, 1/1.7", 8 MP, C-mount lens. High resolution with highly consistent sharpness across the image Low distortion and excellent relative illumination
Features
- High resolution with highly consistent sharpness across the image
- Low distortion and excellent relative illumination
- Excellent resolving power at all object distances
- Achromatic design for better imaging with color cameras
Specifications
| Model | LS-MF0624M-8MPS |
|---|---|
| Focal length | 6 mm |
| F-number | F2.4 ~ F16 |
| Image size | Φ9.4 mm(1/1.7") |
| Distortion | -1.22% |
| Minimum object distance | 0.1 m |
| Field of view | D(9.32):75.63°; H(7.44):63.24°; V(5.62):49.72° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ33.4 mm × 32.8 mm |
| Weight | 55.6 g |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.18 kg |
