Machine vision lenses

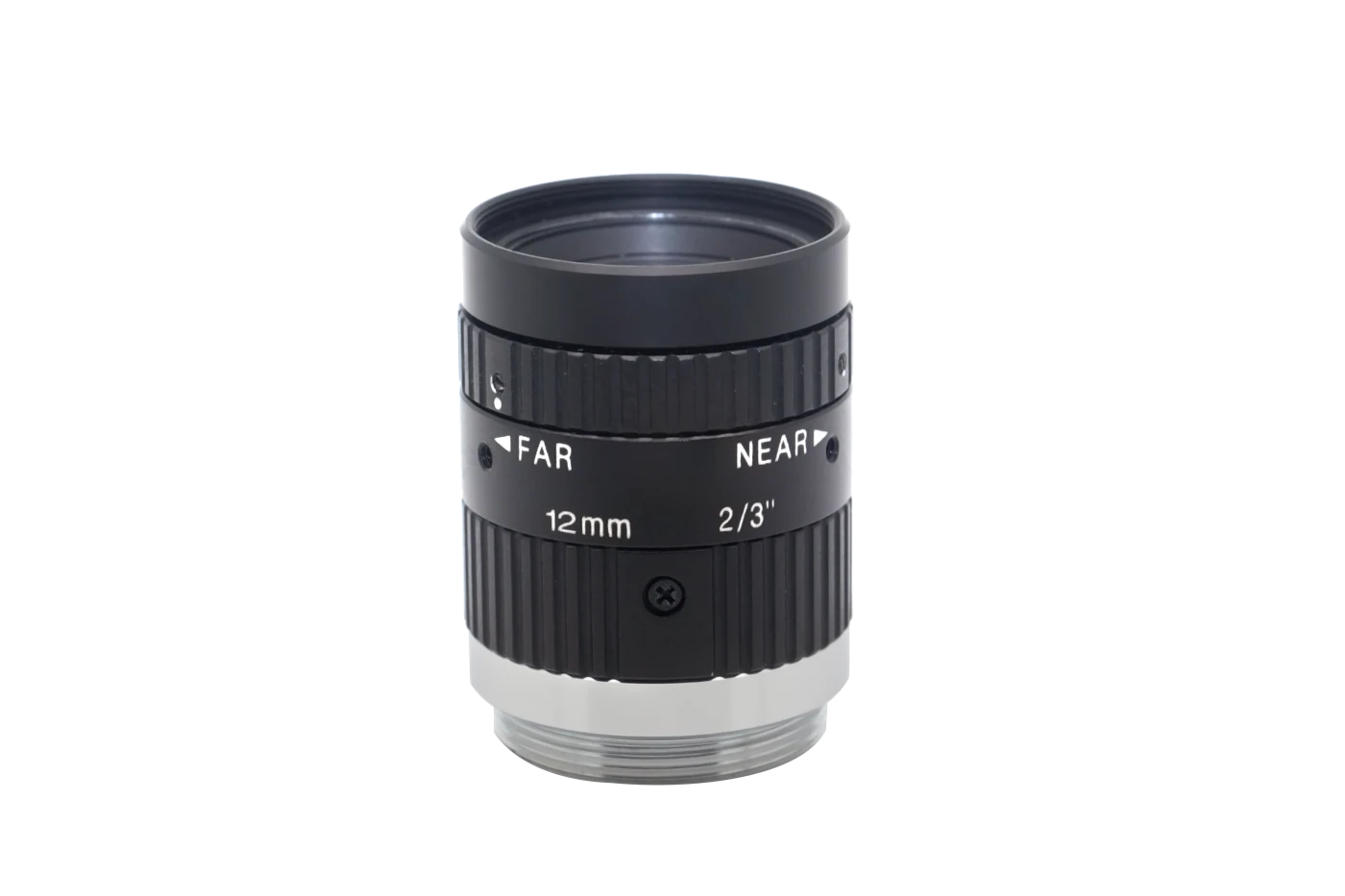

12mm, F2.4, 2/3", 5MP Lens, C-Mount (LS-MF1224M-5MPE)
Model LS-MF1224M-5MPE
12mm, F2.4, 2/3", 5MP Lens, C-Mount. High resolution and consistency of image clarity. Lower distortion and higher relative illumination rate.
Features
- High resolution and consistency of image clarity.
- Lower distortion and higher relative illumination rate.
- Achromatic optical system design, Better imaging performance with color camera.
- Excellent performance at high and low temperature.
- Good optical performance at ultra-short working distance.
Specifications
| Model | LS-MF1224M-5MPE |
|---|---|
| Focal length | 12 mm |
| F-number | F2.4 to F16 |
| Image size | Ø11 mm (2/3'') |
| TV distortion | –0.15% |
| Minimum object distance | 0.15 m |
| Field of View | D (11.1 mm): 48.9°; H (8.45 mm): 38.3°; V (7.07 mm): 32.4° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø29 mm × 36 mm to 37.5 mm (Ø1.1" × 1.4" to 1.5") |
| Weight | 71.6 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.20 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the MF-E series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MF0824M-5MPE | Price on request | 2 in stock | View | |
| LS-MF1618M-5MPE | Price on request | 5 in stock | View | |
| LS-MF2518M-5MPE | Price on request | 2 in stock | View | |
| LS-MF3518M-5MPE | Price on request | 2 in stock | View | |
| LS-MF5028M-5MPE | Price on request | 5 in stock | View |
