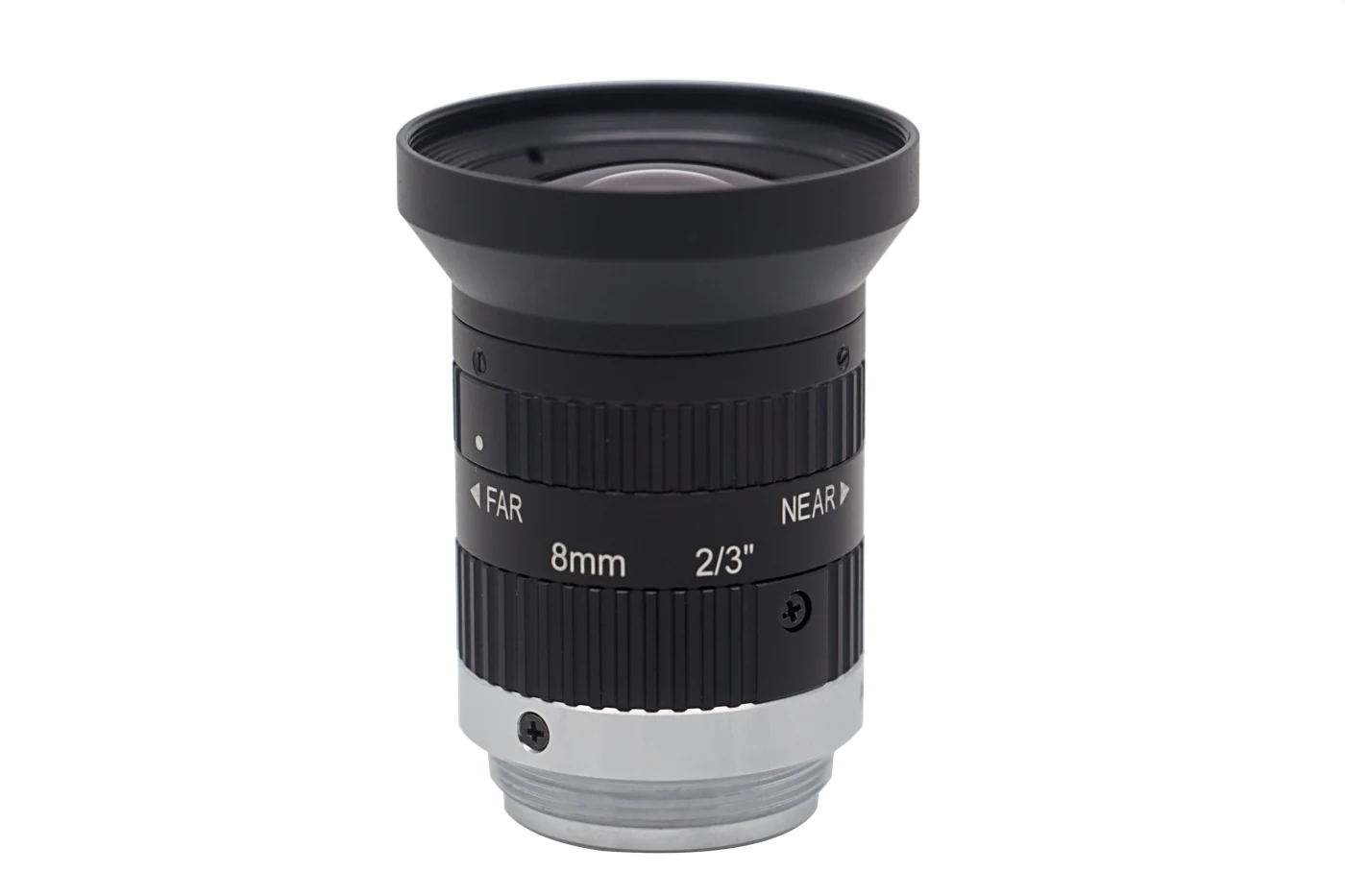

8mm, F2.4, 2/3", 5MP Lens, C-Mount (LS-MF0824M-5MPE)
Model LS-MF0824M-5MPE
8mm, F2.4, 2/3", 5MP Lens, C-Mount. High resolution and consistency of image clarity. Lower distortion and higher relative illumination rate.
Features
- High resolution and consistency of image clarity.
- Lower distortion and higher relative illumination rate.
- Achromatic optical system design, Better imaging performance with color camera.
- Excellent performance at high and low temperature.
- Good optical performance at ultra-short working distance.
Specifications
| Model | LS-MF0824M-5MPE |
|---|---|
| Focal length | 8 mm |
| F-number | F2.4 to F16 |
| Image size | Ø11 mm (2/3'') |
| TV distortion | –0.90% |
| Minimum object distance | 0.1 m |
| Field of View | D (11.1 mm): 70.6°; H (8.45 mm): 56.4°; V (7.07 mm): 48.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø37 mm × 43.8 mm to 45.1 mm (Ø1.5" × 1.7" to 1.8") |
| Weight | 87.3 g (0.2 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.22 kg |
