Line scan lenses

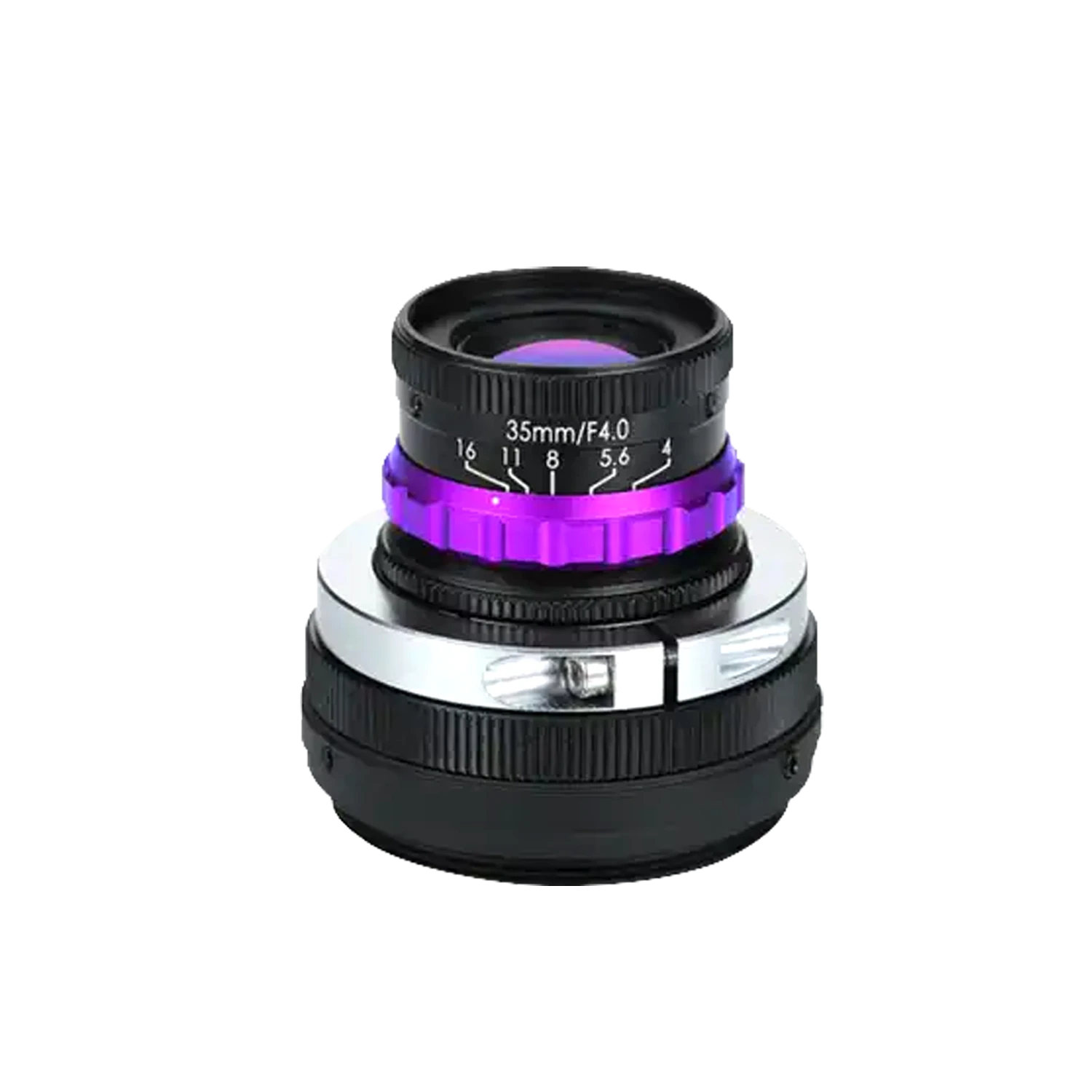

Line scan lens (LS-LS), 35 mm, M42/M58-mount (LS-LS354K)
Model LS-LS354K
Manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.
Features
- Focal length 35mm.
- Large image plane:Image circle 28mm.
- High resolution, Low magnification, Excellent imaging effect.
- Anti-shock focusing fastening method.
Specifications
| Model | LS-LS354K |
|---|---|
| Focal Length | 35mm |
| Resolution | 4K7μ |
| F/NO | 4 ~ 16 |
| Image Circle | 28mm |
| Magnification | 0.01x0.5x |
| WD | 88-3518mm |
| Mount | M42/M58 |
| Type | Line Scan Lens |
| F/NO (product page) | F4~F16 |
| Magnification (product page) | 0.01x-0.5x |
| Working Distance | 88mm-3518mm |
| Mount (product page) | M42xP1.0-6g |
| Temperature range | —20℃~+60℃ |
| Distortion(%) | <0.02 |
| Relative lllumination(%) | >75 |
| Aperture | 4 ~ 16 |
| Shipping weight | 0.94 kg |
