Infrared cameras

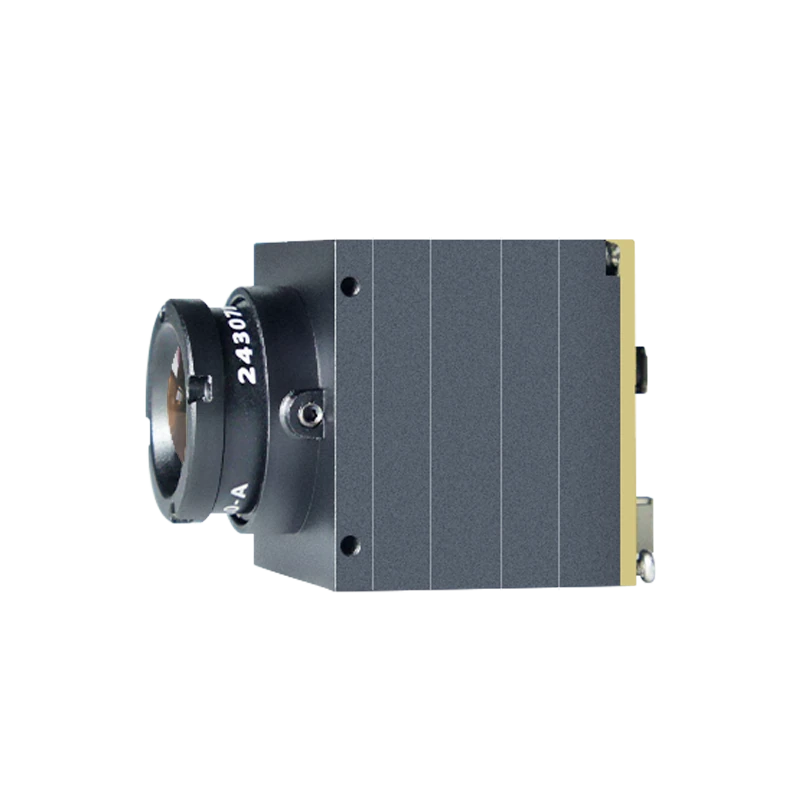

LWIR thermal camera module (LS-LM), 0.3 MP, USB3 (LS-LM64091)
Model LS-LM64091
Long-wave infrared thermal imaging camera module features a 640x512 resolution infrared detector, equipped with a high-performance 9.1mm anti-environmental interference lens and image processing algorithms tailored for specific scenarios.
Features
- High sensitivity, clear and stable imaging quality.
- High frame rate, fast moving target detection smooth.
- Highly integrated, convenient for secondary development.
- Small size, light weight, low power consumption.
- Multiple lens options, easy to deal with various scenarios.
Specifications
| Model | LS-LM64091 |
|---|---|
| Reeolution | 640×512 |
| Pixth pitch | 12dia. m |
| Len | 9.1mm |
| Detector type | Uncooled infrared module |
| Video output interface | Optional interface: CVBS/USB(UVC)/ BT656/Bt.1120 [Support customization] |
| Resolution ratio | 640x512 |
| Response band | 8~14μm(LWIR) |
| Detector type (product page) | Vanadium Oxide |
| Pixel spacing | 12μm |
| NETD | ≤40mK |
| Lens | 9.1mm |
| Frame Rate | ≤50Hz |
| Brightness, contrast | Automatic/manual |
| Polarity | White hot, black hot |
| Pseudo color | Iron, Iron invert, Rainbow,Feather |
| Magnification | X1X2X4 |
| Picture processing | Non-uniformity correction, digital filtering noise reduction, digital detail enhancement |
| Image mirroring | Left and right/up and down |
| Output resolution | 640x512 |
| Power protection | Overcurrent protection, overvoltage protection, reverse input protection suppress high voltage surge |
| Power supply | DC5~12V |
| Typical power consumption | ≤1W |
| Video output | CVBS |
| Communication Interface | RS-232 |
| Size | 26×26×21.1mm (without lens and connectors) |
| Weight | ≤23g (without lens and connectors) |
| Operating temperature | 20℃~+60℃ |
| Environment temperature | 45℃~+85℃ |
| Humidity | 595%, non-condensing |
| Vibration | 6.06g, All Axial for RandomVibration |
| Shock | 40g, 4ms, Rear Peak Sawtooth Wave at 3Axes of 6Directions |
| Temperature measurement range | 140℃~600℃ |
| Accuracy | ±2℃ or 2% of the reading |
| Sensor | Uncooled infrared module |
| Pixel size (um) | 12 |
| Voltage | DC5~12V |
