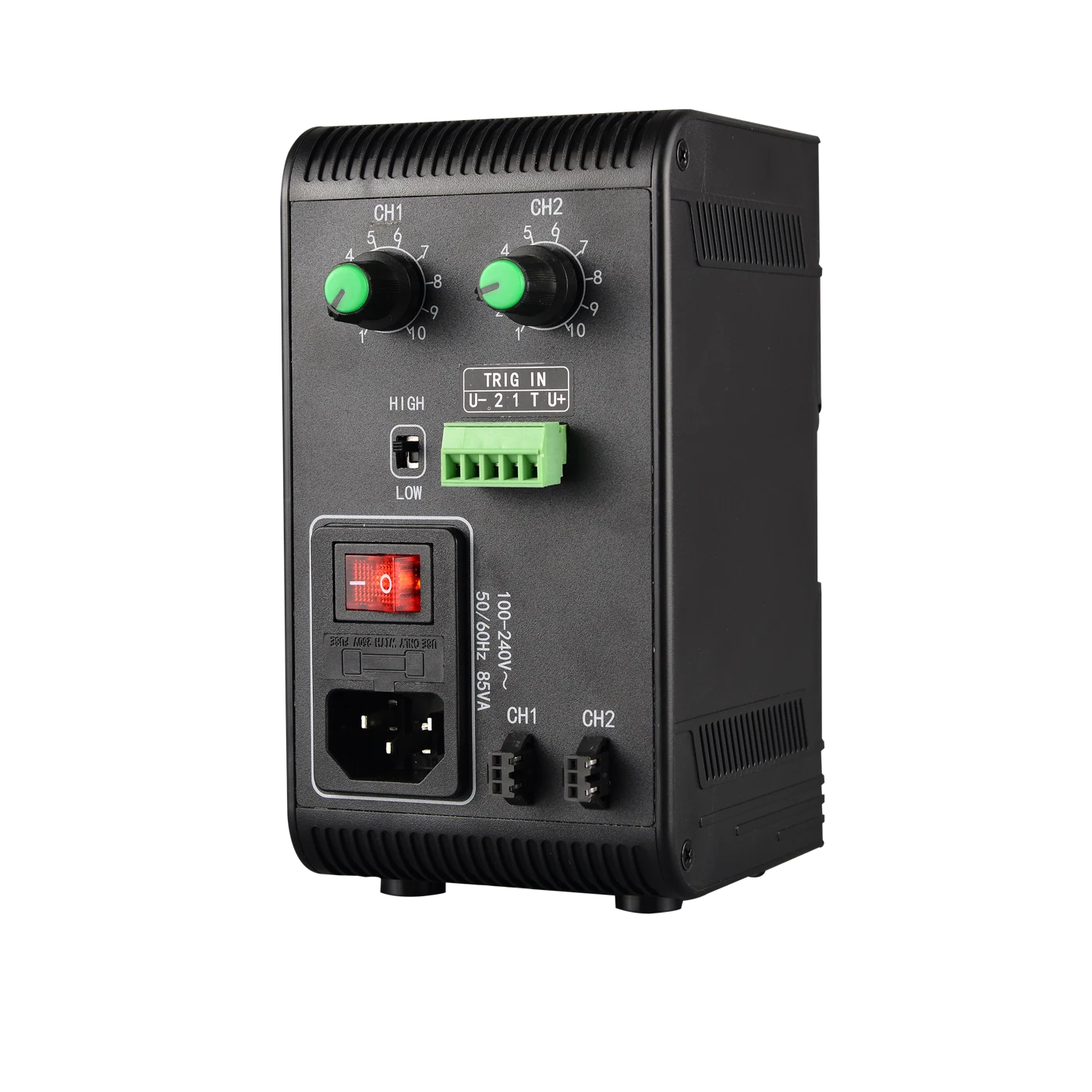

Analog constant-voltage light controller, 200W, 2 channels, 12M-2B interface (LS-LEVS-200-2B-SY)
Model LS-LEVS-200-2B-SY
Analog constant-voltage light controller, 200W, 2 channels, 12M-2B interface. Light brightness set manually or by external trigger Up to 17 A output current per channel
Features
- Light brightness set manually or by external trigger
- Up to 17 A output current per channel
- Some models include an external trigger port to switch the light on and off as needed
- Built-in universal switching power supply, 100–240 VAC input
Specifications
| Model | LS-LEVS-200-2B-SY |
|---|---|
| Drive mode | Constant voltage |
| Lighting mode | Analog |
| PWM frequency | Not supported |
| Strobe overdrive | Not supported |
| Channel | 2 |
| Dimming mode | Panel knob |
| Brightness level | Stepless dimming |
| Lighting response time | <1 ms |
| Trigger mode | External trigger supported, Internal trigger |
| Communication protocol | Not supported |
| Applicable product | Continuous panel light, Continuous line light |
| Input voltage | 24 VDC |
| Input current | 3 A |
| Output current | 8.3 A max |
| Output power | 200 W max |
| Output current for each channel | 6 A max |
| Trigger in | Level signal DC 5 to 24 V / 6 mA |
| Trigger out | Not supported |
| Power supply interface | AC socket |
| Console interface | Not supported |
| Digital I/O | 2 inputs, 1 internal power output |
| Lighting output connector | 12M-2B |
| Dimension | 104.8 mm × 95 mm × 180 mm |
| Shell material | Plastic |
| Weight | Approx. 760 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Ingress protection | IP30 (when properly installed) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Cooling mode | Forced cooling (built-in fan) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.16 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
