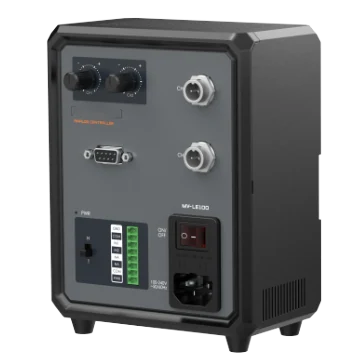

Analog Light Controller, 2 channel, 200W/24V (LS-LE100-200W24-2BD)
Model LS-LE100-200W24-2BD
Analog Light Controller, 2 channel, 200W/24V. Adopts constant voltage control and supports infinitely variable brightness. Adopts knob control on control panel, and plug and play.
Features
- Adopts constant voltage control and supports infinitely variable brightness.
- Adopts knob control on control panel, and plug and play.
- Provides multichannel opto-isolated inputs.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.
Specifications
| Model | LS-LE100-200W24-2BD |
|---|---|
| Dimming mode | Control panel (knob), software (serial port) |
| Trigger mode | External trigger |
| Output current for each channel | Max. 6 A |
| Channel | 2-channel |
| Power supply interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 2 |
| Dimension | 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7") |
| Shell material | Plastic |
| Weight | Approx. 820 g (1.8 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.25 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
