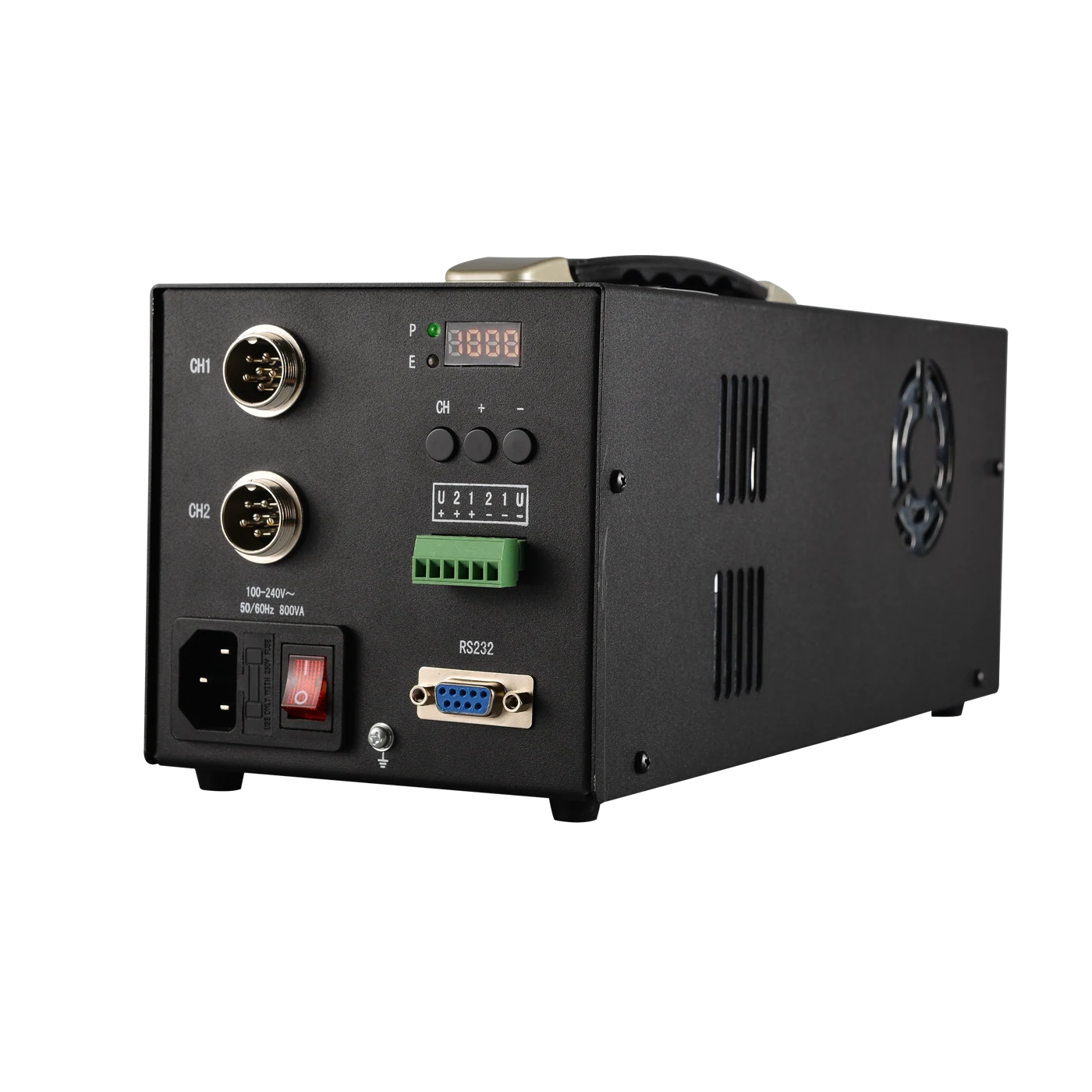

Analog constant-current light controller, 600W, 2 channels, 20M-4K connector, Line light controller (LS-LELS-600-2K-PY)
Model LS-LELS-600-2K-PY
Analog constant-current light controller, 600W, 2 channels, 20M-4K connector, Line light controller. 3 light control methods: front panel, RS-232 serial and RJ45 Ethernet External trigger port lights the light only when needed, extending its life
Features
- 3 light control methods: front panel, RS-232 serial and RJ45 Ethernet
- External trigger port lights the light only when needed, extending its life
- Power-loss memory, short-circuit protection and overload protection
- 2 drive modes, constant voltage and constant current, for more stable light output
- Automatically detects the rated current of the light to drive lights of different specifications
Specifications
| Model | LS-LELS-600-2K-PY |
|---|---|
| Drive mode | Constant voltage |
| Lighting mode | Analog constant voltage |
| PWM frequency | Not supported |
| Strobe overdrive | Not supported |
| Channel | 2 |
| Dimming mode | Panel buttons, Serial communication |
| Brightness level | 0 ~ 255 |
| Lighting response time | <5 ms |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | RS-232 |
| Applicable product | Ring light, Bar light, Flat light, Coaxial light, Standard line light |
| Input voltage | 24 VDC |
| Input current | 7 A |
| Output current | 25 A max |
| Output power | 600 W max |
| Output current for each channel | 12.5 A max |
| Trigger in | Level signal DC 5 to 24 V / 6 mA |
| Trigger out | Not supported |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | 2 inputs, 1 internal power output |
| Lighting output connector | 4 × 20M-4K |
| Dimension | 318.2 mm × 139.3 mm × 142 mm |
| Shell material | Galvanized steel sheet |
| Weight | Approx. 3490 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 (when properly installed) |
| Cooling mode | Forced cooling (built-in fan) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 4.99 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Line light controllers series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LELS-300-1K-PY | $89.00 | 4 in stock | View | |
| LS-LELS-600-1G-PY | $89.00 | 4 in stock | View | |
| LS-LELS-600-2G-PY | $109.00 | 2 in stock | View | |
| LS-LELD-300-1Z-PY | $109.00 | 2 in stock | View | |
| LS-LELS-300-2G-PY | $199.00 | 3 in stock | View | |
| LS-LELS-1000-4TS-PY | $449.00 | 4 in stock | View | |
| LS-LELS-2400-4TS-PY | $889.00 | 5 in stock | View |
