Coaxial lights

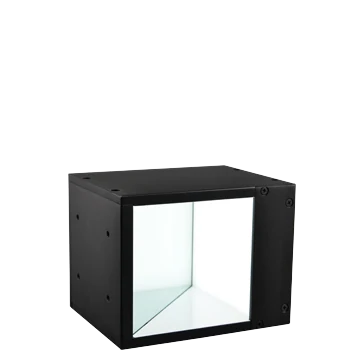

Coaxial Light, 90 x 60 mm, White (LS-LCDS-50-50-W)
Model LS-LCDS-50-50-W
Coaxial Light, 90 x 60 mm, White. Aluminum alloy housing for good heat dissipation High-density LED layout for high brightness
Features
- Aluminum alloy housing for good heat dissipation
- High-density LED layout for high brightness
- Available in custom sizes and wavelengths
Specifications
| Model | LS-LCDS-50-50-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | SMR-03V-B |
| Power | 5.4 W |
| Cable length | 500 mm |
| Dimension | 90 mm × 60 mm × 65 mm |
| Emitting area dimension | 50 mm × 50 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic coaxial lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LCDS-18-18-W | 53.7 x 30 mm, White | 2.1 W | $59.00 | 4 in stock | View |
| LS-LCDS-30-30-W | 67 x 40 mm, White | 1.7 W | $89.00 | 2 in stock | View |
| LS-LCDS-40-40-W | 70 x 46 mm, White | 6.1 W | $99.00 | 5 in stock | View |
| LS-LCDS-40-40-R | 70 x 46 mm, Red | 2.4 W | $99.00 | 2 in stock | View |
| LS-LCDS-55-40-W | 73 x 63 mm, White | 6 W | $139.00 | 4 in stock | View |
| LS-LCDS-60-60-W | 90 x 70 mm, White | 8.1 W | $159.00 | 5 in stock | View |
| LS-LCDS-80-80-W | 114 x 91 mm, White | 17.3 W | $219.00 | 4 in stock | View |
| LS-LCDS-100-100-W | 134 x 111 mm, White | 28.8 W | $299.00 | 3 in stock | View |
| LS-LCDS-100-100-R | 134 x 111 mm, Red | 14.4 W | $299.00 | 5 in stock | View |
| LS-LCDS-120-120-W | 174 x 130 mm, White | 34.2 W | $369.00 | 3 in stock | View |
| LS-LCDS-140-140-W | 188 x 150 mm, White | 47.5 W | $459.00 | 3 in stock | View |
