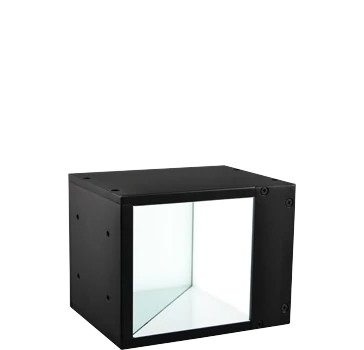

Coaxial Light, 188 x 150 mm, White (LS-LCDS-140-140-W)

Name: Coaxial Light, 188 x 150 mm, White (LS-LCDS-140-140-W)
Brand: LumaSpec Vision
SKU: LS-LCDS-140-140-W
Price: 459.00 USD
Availability: InStock

Model LS-LCDS-140-140-W

Coaxial Light, 188 x 150 mm, White. Aluminum alloy housing for good heat dissipation High-density LED layout for high brightness

Datasheet (PDF) - LS-LCDS-140-140-W 3D model (STEP, ZIP) - LS-LCDS-140-140-W

Features

Aluminum alloy housing for good heat dissipation
High-density LED layout for high brightness
Available in custom sizes and wavelengths

Specifications

Model	LS-LCDS-140-140-W
Color	White
Color temperature	6000 ~ 7000K
Connector type	SMR-03V-B
Power	47.5 W
Cable length	500 mm
Dimension	188 mm × 150 mm × 146 mm
Emitting area dimension	140 mm × 140 mm
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)
Diffuse plate included	Included
Shipping weight (estimated)	0.66 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Classic coaxial lights series

Model	Size	Power	Price	Availability
LS-LCDS-18-18-W	53.7 x 30 mm, White	2.1 W	$59.00	4 in stock	View
LS-LCDS-30-30-W	67 x 40 mm, White	1.7 W	$89.00	2 in stock	View
LS-LCDS-40-40-W	70 x 46 mm, White	6.1 W	$99.00	5 in stock	View
LS-LCDS-40-40-R	70 x 46 mm, Red	2.4 W	$99.00	2 in stock	View
LS-LCDS-50-50-W	90 x 60 mm, White	5.4 W	$129.00	3 in stock	View
LS-LCDS-55-40-W	73 x 63 mm, White	6 W	$139.00	4 in stock	View
LS-LCDS-60-60-W	90 x 70 mm, White	8.1 W	$159.00	5 in stock	View
LS-LCDS-80-80-W	114 x 91 mm, White	17.3 W	$219.00	4 in stock	View
LS-LCDS-100-100-W	134 x 111 mm, White	28.8 W	$299.00	3 in stock	View
LS-LCDS-100-100-R	134 x 111 mm, Red	14.4 W	$299.00	5 in stock	View
LS-LCDS-120-120-W	174 x 130 mm, White	34.2 W	$369.00	3 in stock	View
