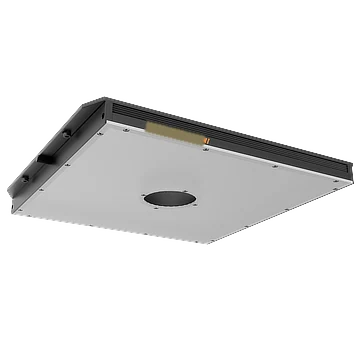

Flat Backlight with Center Hole, 100 x 100 mm, White (LS-LBES-H-100-100-W)
Model LS-LBES-H-100-100-W
Flat Backlight with Center Hole, 100 x 100 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
Features
- Adopts high-density array LED design.
- Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Provides side mounting lugs to achieve flexible installation.
Specifications
| Model | LS-LBES-H-100-100-W |
|---|---|
| Color | White |
| Center illuminance/irradiance | ≥ 7000 lux@200 mm |
| Color temperature | 6000 ~ 7000K |
| Power | 11 W |
| Connector type | SMR-03V-B |
| Dimension | 132 mm × 113 mm × 18 mm |
| Emitting area dimension | 100 mm × 100 mm |
| Bore dimension | Φ40 mm |
| Weight | 0.3 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Flat lights with center hole series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBES-H-50-50-B2 | 50 x 50 mm, Blue | 2 W | $89.00 | 5 in stock | View |
| LS-LBES-H-50-50-R2 | 50 x 50 mm, Red | 1.7 W | $89.00 | 3 in stock | View |
| LS-LBES-H-50-50-W2 | 50 x 50 mm, White | 2.2 W | $89.00 | 3 in stock | View |
| LS-LBES-H-100-100-B2 | 100 x 100 mm, Blue | 10.5 W | $109.00 | 3 in stock | View |
| LS-LBES-H-100-100-R2 | 100 x 100 mm, Red | 8.8 W | $109.00 | 5 in stock | View |
| LS-LBES-H-100-100-W2 | 100 x 100 mm, White | 12 W | $109.00 | 2 in stock | View |
| LS-LBES-H-120-120-W | 120 x 120 mm, White | 16 W | Price on request | 3 in stock | View |
| LS-LBES-H-120-120-B2 | 120 x 120 mm, Blue | 15.3 W | $129.00 | 5 in stock | View |
| LS-LBES-H-120-120-R2 | 120 x 120 mm, Red | 13 W | $129.00 | 2 in stock | View |
| LS-LBES-H-120-120-W2 | 120 x 120 mm, White | 17.6 W | $129.00 | 5 in stock | View |
| LS-LBES-H-150-150-B2 | 150 x 150 mm, Blue | 26.4 W | $159.00 | 5 in stock | View |
| LS-LBES-H-150-150-R2 | 150 x 150 mm, Red | 19.5 W | $159.00 | 2 in stock | View |
| LS-LBES-H-150-150-W2 | 150 x 150 mm, White | 27.7 W | $159.00 | 2 in stock | View |
| LS-LBES-H-250-150-W | 250 x 150 mm, White | 41 W | Price on request | 5 in stock | View |
| LS-LBES-H-250-150-B2 | 250 x 150 mm, Blue | 34.7 W | $209.00 | 2 in stock | View |
| LS-LBES-H-250-150-R2 | 250 x 150 mm, Red | 30.8 W | $209.00 | 5 in stock | View |
| LS-LBES-H-250-150-W2 | 250 x 150 mm, White | 39.4 W | $209.00 | 3 in stock | View |
| LS-LBES-H-200-200-W | 200 x 200 mm, White | 48 W | Price on request | 5 in stock | View |
| LS-LBES-H-200-200-B2 | 200 x 200 mm, Blue | 41.4 W | $219.00 | 5 in stock | View |
| LS-LBES-H-200-200-R2 | 200 x 200 mm, Red | 34.1 W | $219.00 | 5 in stock | View |
| LS-LBES-H-200-200-W2 | 200 x 200 mm, White | 48 W | $219.00 | 4 in stock | View |
| LS-LBES-H-250-200-W | 250 x 200 mm, White | 53 W | Price on request | 3 in stock | View |
| LS-LBES-H-250-200-B2 | 250 x 200 mm, Blue | 48 W | $259.00 | 3 in stock | View |
| LS-LBES-H-250-200-R2 | 250 x 200 mm, Red | 45.7 W | $259.00 | 2 in stock | View |
See all 53 models in the Flat lights with center hole series
