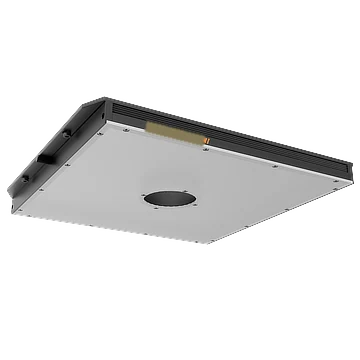

Flat Backlight with Center Hole, 120 x 120 mm, White (LS-LBES-H-120-120-W2)
Model LS-LBES-H-120-120-W2
Flat Backlight with Center Hole, 120 x 120 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
Features
- Adopts high-density array LED design.
- Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Provides side mounting lugs to achieve flexible installation.
Specifications
| Model | LS-LBES-H-120-120-W2 |
|---|---|
| Color | White |
| Center illuminance/irradiance | ≥ 10000 lux@200 mm |
| Color temperature | 6000 ~ 7000K |
| Power | 17.6 W |
| Input voltage | 24 VDC |
| Connector type | SMR-03V-B |
| Dimension | 152 mm × 133 mm × 18 mm |
| Emitting area dimension | 120 mm × 120 mm |
| Bore dimension | Ø 40 mm |
| Weight | 0.4 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
