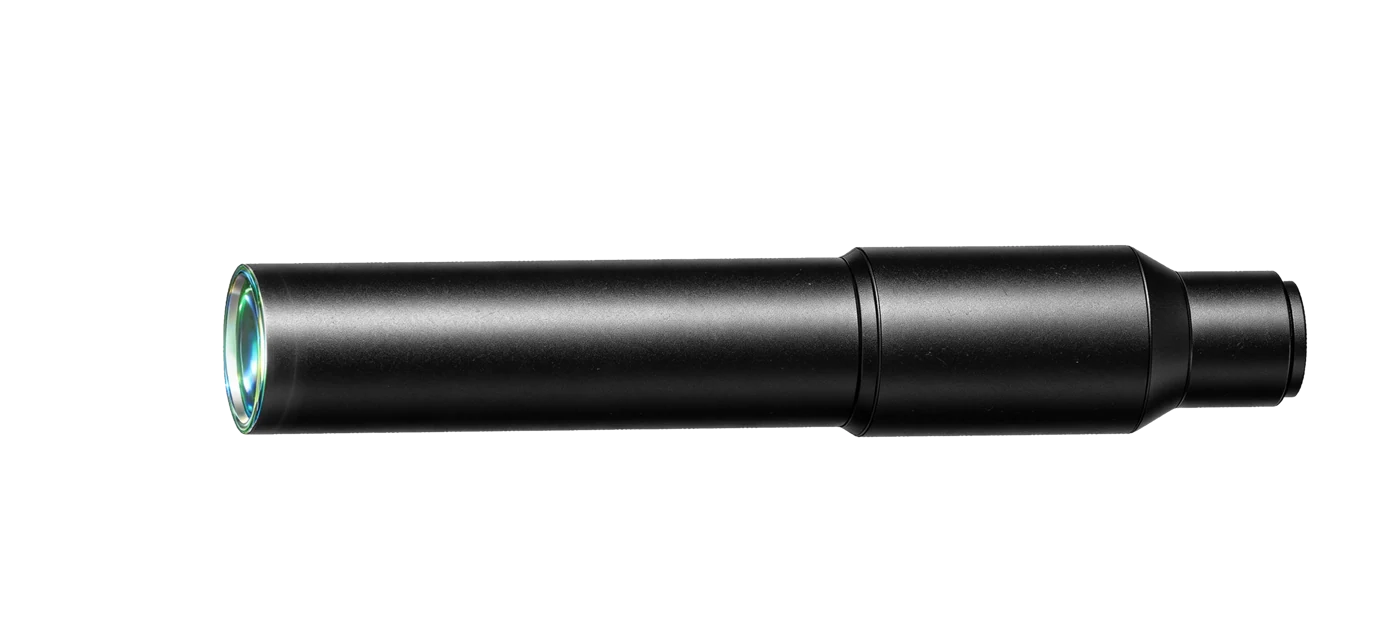

Object-Side Telecentric Lens, 0.24x, 760 mm WD, 1" (LS-KY-024-760)
Model LS-KY-024-760
Object-Side Telecentric Lens, 0.24x, 760 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KY-024-760 |
|---|---|
| Magnification | 0.24 |
| Working distance | 760 mm |
| Image size | 1" |
| F-number | F11.2 |
| Depth of field | 15.6 mm |
| Distortion | ≤ 0.05% |
| Object-side resolution | 31.4 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 240 mm × Φ38 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KY-04-300 | 0.4x, 300 mm WD, 4/3" | $3,469.00 | 5 in stock | View |
| LS-KS-025-310 | 0.25x, 310 mm WD, 1.2" | $3,469.00 | 3 in stock | View |
| LS-KS-04-425 | 0.4x, 425 mm WD, 1.1" | $3,469.00 | 5 in stock | View |
| LS-KY-03-340 | 0.3x, 340 mm WD, 1" | $3,819.00 | 3 in stock | View |
| LS-KY-022-380 | 0.22x, 380 mm WD, 1" | $4,259.00 | 2 in stock | View |
| LS-KY-03-360 | 0.3x, 360 mm WD, 1" | $4,259.00 | 5 in stock | View |
| LS-KS-015-640 | 0.15x, 640 mm WD, 1.1" | $4,259.00 | 2 in stock | View |
| LS-KS-015-963 | 0.15x, 963 mm WD, 1.1" | $4,259.00 | 3 in stock | View |
| LS-KY-0175-640 | 0.175x, 640 mm WD, 1" | $4,669.00 | 3 in stock | View |
| LS-KY-018-630 | 0.18x, 630 mm WD, 1" | $4,669.00 | 4 in stock | View |
| LS-KY-025-415 | 0.25x, 415 mm WD, 4/3" | $4,669.00 | 4 in stock | View |
| LS-KY-028-680 | 0.28x, 680 mm WD, 1" | $4,669.00 | 3 in stock | View |
| LS-KY-029-742 | 0.29x, 742 mm WD, 1" | $4,669.00 | 4 in stock | View |
| LS-KS-025-423 | 0.25x, 423 mm WD, 1.2" | $4,669.00 | 2 in stock | View |
| LS-KS-0128-1115 | 0.128x, 1115 mm WD, 1.1" | $4,669.00 | 4 in stock | View |
| LS-KS-01-778 | 0.1x, 778 mm WD, 1.2" | $4,669.00 | 4 in stock | View |
| LS-KY-022-530 | 0.22x, 530 mm WD, 1" | $5,699.00 | 3 in stock | View |
| LS-KY-02-550 | 0.2x, 550 mm WD, 1" | $5,699.00 | 2 in stock | View |
| LS-KY-025-465 | 0.25x, 465 mm WD, 1" | $5,699.00 | 2 in stock | View |
| LS-KY-025-695 | 0.25x, 695 mm WD, 4/3" | $5,699.00 | 4 in stock | View |
| LS-KY-014-700 | 0.14x, 700 mm WD, 1" | $5,699.00 | 3 in stock | View |
| LS-KS-02-604 | 0.2x, 604 mm WD, 1.2" | $5,699.00 | 5 in stock | View |
| LS-KS-02-750 | 0.2x, 750 mm WD, 1.1" | $5,699.00 | 3 in stock | View |
| LS-KS-013-630 | 0.13x, 630 mm WD, 1.2" | $5,699.00 | 2 in stock | View |
See all 123 models in the K Series Object-Side Telecentric lenses series
