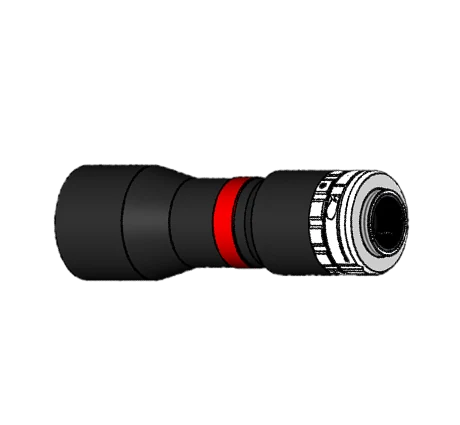

Bi-Telecentric Lens, 0.638x, 73 mm WD, 1" (LS-KBT-0638-73)
Model LS-KBT-0638-73
Bi-Telecentric Lens, 0.638x, 73 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 1"
Specifications
| Model | LS-KBT-0638-73 |
|---|---|
| Magnification | 0.638 |
| Working distance | 73 mm |
| F-number | F8.7 |
| Depth of field | ±1.6 @F16 |
| Distortion | < 0.1% |
| Object-side resolution | 8.7 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1" |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 136.4 mm × Φ44 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Bi-Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KBT-0806-110-M42 | 0.806x, 110 mm WD, 1.75" | $859.00 | 3 in stock | View |
| LS-KBT-0503-48 | 0.503x, 48 mm WD, 1" | $929.00 | 5 in stock | View |
| LS-KBT-0634-45 | 0.634x, 45 mm WD, 1.1" | $999.00 | 3 in stock | View |
| LS-KBT-0708-73 | 0.708x, 73 mm WD, 1.1" | $999.00 | 5 in stock | View |
| LS-KBT-0511-110 | 0.511x, 110 mm WD, 1.1" | $1,019.00 | 5 in stock | View |
| LS-KBT-0377-82 | 0.377x, 82 mm WD, 1" | $1,029.00 | 4 in stock | View |
| LS-KBT-069-118-M42 | 0.69x, 118 mm WD, 1.75" | $1,109.00 | 3 in stock | View |
| LS-KBT-046-110 | 0.46x, 110 mm WD, 1" | $1,169.00 | 2 in stock | View |
| LS-KBT-0438-118 | 0.438x, 118 mm WD, 1.1" | $1,269.00 | 2 in stock | View |
| LS-KBT-0395-118 | 0.395x, 118 mm WD, 1" | $1,279.00 | 5 in stock | View |
| LS-KBT-0383-128 | 0.383x, 128 mm WD, 1.1" | $1,379.00 | 3 in stock | View |
| LS-KBT-0329-138 | 0.329x, 138 mm WD, 1.1" | $1,379.00 | 3 in stock | View |
| LS-KBT-0346-128 | 0.346x, 128 mm WD, 1" | $1,379.00 | 5 in stock | View |
| LS-KBT-0403-178-M58 | 0.403x, 178 mm WD, 1.75" | $1,519.00 | 4 in stock | View |
| LS-KBT-0296-138 | 0.296x, 138 mm WD, 1" | $1,599.00 | 5 in stock | View |
| LS-KBT-0288-158 | 0.288x, 158 mm WD, 1.1" | $1,609.00 | 2 in stock | View |
| LS-KBT-0256-178 | 0.256x, 178 mm WD, 1.1" | $1,649.00 | 3 in stock | View |
| LS-KBT-0175-160 | 0.175x, 160 mm WD, 1.1" | $1,649.00 | 5 in stock | View |
| LS-KBT-0322-208-M42 | 0.322x, 208 mm WD, 1.75" | $1,749.00 | 3 in stock | View |
| LS-KBT-0259-158 | 0.259x, 158 mm WD, 1" | $1,759.00 | 5 in stock | View |
| LS-KBT-0231-178 | 0.231x, 178 mm WD, 1" | $1,789.00 | 2 in stock | View |
| LS-KBT-0363-228-M42 | 0.363x, 228 mm WD, 1.75" | $1,809.00 | 3 in stock | View |
| LS-KBT-0230-228 | 0.23x, 228 mm WD, 1.1" | $1,909.00 | 2 in stock | View |
| LS-KBT-0208-228 | 0.208x, 228 mm WD, 1" | $1,929.00 | 2 in stock | View |
See all 37 models in the K Series Bi-Telecentric lenses series
