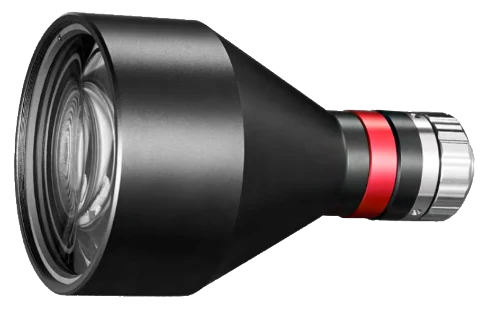

Bi-Telecentric Lens, 0.208x, 228 mm WD, 1" (LS-KBT-0208-228)
Model LS-KBT-0208-228
Bi-Telecentric Lens, 0.208x, 228 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 1"
Specifications
| Model | LS-KBT-0208-228 |
|---|---|
| Magnification | 0.208 |
| Working distance | 228 mm |
| F-number | F6.5 |
| Depth of field | ±14.8 @F16 |
| Distortion | < 0.1% |
| Object-side resolution | 17.8 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1" |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 200.5 mm × Φ110 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Bi-Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KBT-0329-138 | 0.329x, 138 mm WD, 1.1" | $1,379.00 | 3 in stock | View |
| LS-KBT-0346-128 | 0.346x, 128 mm WD, 1" | $1,379.00 | 5 in stock | View |
| LS-KBT-0403-178-M58 | 0.403x, 178 mm WD, 1.75" | $1,519.00 | 4 in stock | View |
| LS-KBT-0296-138 | 0.296x, 138 mm WD, 1" | $1,599.00 | 5 in stock | View |
| LS-KBT-0288-158 | 0.288x, 158 mm WD, 1.1" | $1,609.00 | 2 in stock | View |
| LS-KBT-0256-178 | 0.256x, 178 mm WD, 1.1" | $1,649.00 | 3 in stock | View |
| LS-KBT-0175-160 | 0.175x, 160 mm WD, 1.1" | $1,649.00 | 5 in stock | View |
| LS-KBT-0322-208-M42 | 0.322x, 208 mm WD, 1.75" | $1,749.00 | 3 in stock | View |
| LS-KBT-0259-158 | 0.259x, 158 mm WD, 1" | $1,759.00 | 5 in stock | View |
| LS-KBT-0231-178 | 0.231x, 178 mm WD, 1" | $1,789.00 | 2 in stock | View |
| LS-KBT-0363-228-M42 | 0.363x, 228 mm WD, 1.75" | $1,809.00 | 3 in stock | View |
| LS-KBT-0230-228 | 0.23x, 228 mm WD, 1.1" | $1,909.00 | 2 in stock | View |
| LS-KBT-0204-208 | 0.204x, 208 mm WD, 1.1" | $1,929.00 | 3 in stock | View |
| LS-KBT-0184-208 | 0.184x, 208 mm WD, 1" | $2,099.00 | 4 in stock | View |
| LS-KBT-0184-238 | 0.184x, 238 mm WD, 1.1" | $2,229.00 | 4 in stock | View |
| LS-KBT-0166-238 | 0.166x, 238 mm WD, 1" | $2,269.00 | 2 in stock | View |
| LS-KBT-0167-263 | 0.167x, 263 mm WD, 1.1" | $2,269.00 | 2 in stock | View |
| LS-KBT-0153-273 | 0.153x, 273 mm WD, 1.1" | $2,529.00 | 5 in stock | View |
| LS-KBT-0138-273 | 0.138x, 273 mm WD, 1" | $2,779.00 | 5 in stock | View |
| LS-KBT-0122-288 | 0.122x, 288 mm WD, 1" | $2,889.00 | 3 in stock | View |
| LS-KBT-0315-350-C | 0.315x, 350 mm WD, 1.75" | $2,909.00 | 5 in stock | View |
| LS-KBT-0108-318 | 0.108x, 318 mm WD, 1.1" | $3,049.00 | 2 in stock | View |
| LS-KBT-0087-330 | 0.087x, 330 mm WD, 1" | $3,549.00 | 2 in stock | View |
| LS-KBT-0085-372 | 0.085x, 372 mm WD, 1.1" | $3,679.00 | 3 in stock | View |
See all 37 models in the K Series Bi-Telecentric lenses series
