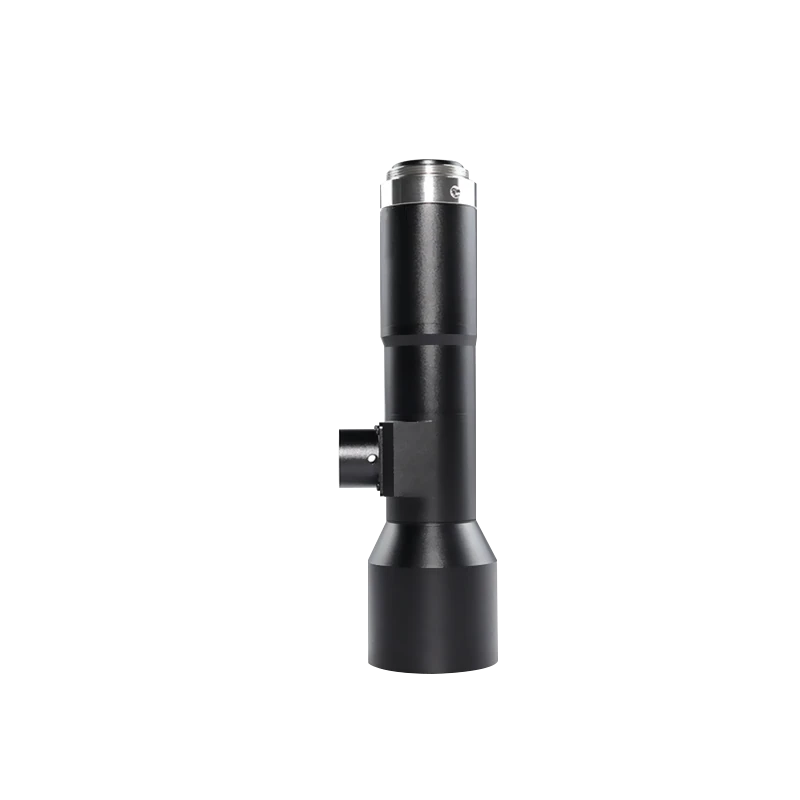

Bi-telecentric lens for 1.1" sensor (X11 series), 1.5x, WD 110 mm, 1.1", C-mount (LS-HF110-15X11C)

Name: Bi-telecentric lens for 1.1" sensor (X11 series), 1.5x, WD 110 mm, 1.1", C-mount (LS-HF110-15X11C)
Brand: LumaSpec Vision
SKU: LS-HF110-15X11C
Price: 759.00 USD
Availability: InStock

Model LS-HF110-15X11C

Bi-telecentric C-mount lens supporting 1.1" (dia. 19.5 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view.

Datasheet (PDF) - LS-HF110-15X11C

Features

Maximum support for a 1.1" dia. 19.5 mm target face camera
Excellent bilateral telecentric optical path, ultra low distortion design
Large depth of field design for high and low difference imaging products
High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
Lightweight fastening structure designed to perform stably at high speed
25 million pixels
Coaxial version available (C suffix, LS-HF110-1X11C)
WD=178mm, Magnification 0.4X, DOF 3.5mm, Distortion TV<0.02%.
Eliminate parallax and distortion ‌.
Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.

Specifications

Model	LS-HF110-15X11C
Mount	C
Sensor size	1.1" dia.18.5mm (table); text: 1.1" dia. 19.5 mm target face
Resolution	25 million pixels
Type	Coaxial Telecentric lens
Magnification	1.5
WD	110mm
DOF	0.4mm
F/NO	F11
MTF>0.3(LP/mm)	120
Telecentric degree	<0.1°
Distortion	<0.1%
Maximum View Distance	12.3mm
Main Material	Aluminum Alloy + optical Glass
Custom Design	Supported
Sensor format	1.1"dia. 18.5mm
Working distance (mm)	110
Aperture	F11
Shipping weight	0.60 kg

Applications

Imaging products with high and low differences (large depth of field)

Complete the station
