Telecentric lenses

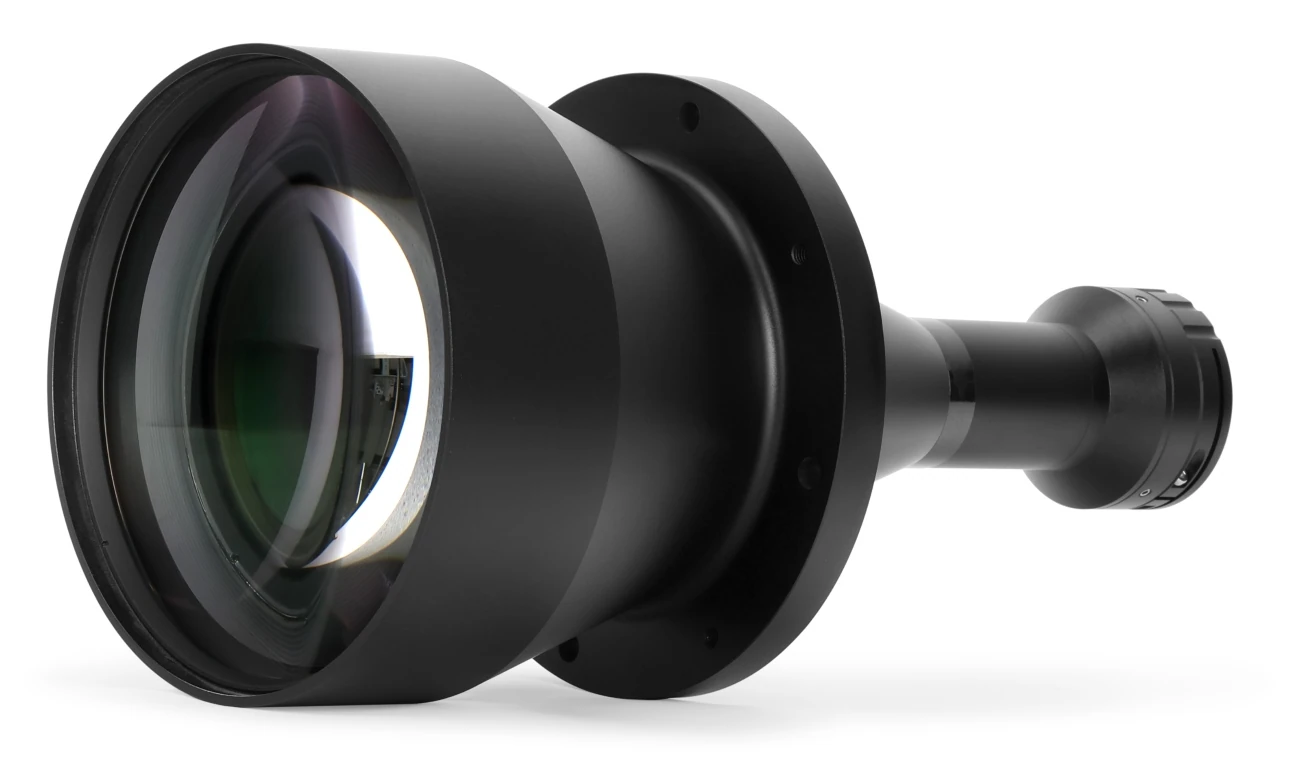

Bi-telecentric lens for 1.1" sensor (X11 series), 0.345x, WD 178 mm, 1.1", C-mount (LS-HF178-0345X11)
Model LS-HF178-0345X11
Bi-telecentric C-mount lens supporting 1.1" (dia. 19.5 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view.
Features
- Maximum support for a 1.1" dia. 19.5 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- 25 million pixels
- Coaxial version available (C suffix, LS-HF110-1X11C)
Specifications
| Model | LS-HF178-0345X11 |
|---|---|
| Mount | C |
| Sensor size | 1.1" dia.18.5mm (table); text: 1.1" dia. 19.5 mm target face |
| Resolution | 25 million pixels |
| Lighting mode | non-coaxial |
| Magnification (X) | 0.345 |
| Working distance (mm) | 178 |
| DOF (mm) | 4.2mm |
| Iris (F) | F6 |
| MTF>0.3 (LP/mm) | 180 |
| Telecentricity (°) | <0.05 |
| Optical distortion (%) | <0.02% |
| View distance maximum (mm) | 53.6 |
| View distance 1" (12.8x9.6) (mm) | 37x27.8 |
| View distance 1.1" (14.2x10.4) (mm) | 41.1x30.1 |
| Sensor format | 1.1" |
| Aperture | F6 |
| Field of view | 41.1x30.1 mm (on 1.1" sensor) |
| Shipping weight | 0.97 kg |
Applications
- Imaging products with high and low differences (large depth of field)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 1.1" sensor (X11 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HF110-15X11 | 1.5x, WD 110 mm, 1.1", C-mount | $319.00 | 5 in stock | View |
| LS-HF110-1X11 | 1x, WD 110 mm, 1.1", C-mount | $349.00 | 4 in stock | View |
| LS-HF110-1X11C | 1x, WD 110 mm, 1.1", C-mount | $349.00 | 2 in stock | View |
| LS-HF220-1X11 | 1x, WD 220 mm, 1.1", C-mount | $349.00 | 2 in stock | View |
| LS-HF110-08X11 | 0.8x, WD 110 mm, 1.1", C-mount | $369.00 | 4 in stock | View |
| LS-HF220-08X11 | 0.8x, WD 220 mm, 1.1", C-mount | $369.00 | 2 in stock | View |
| LS-HF110-07X11 | 0.7x, WD 110 mm, 1.1", C-mount | $389.00 | 2 in stock | View |
| LS-HF220-06X11 | 0.6x, WD 190 mm, 1.1", C-mount | $409.00 | 4 in stock | View |
| LS-HF110-052X11 | 0.52x, WD 110 mm, 1.1", C-mount | $429.00 | 4 in stock | View |
| LS-HF220-05X11 | 0.5x, WD 220 mm, 1.1", C-mount | $429.00 | 2 in stock | View |
| LS-HF178-04X11 | 0.4x, WD 178 mm, 1.1", C-mount | $479.00 | 2 in stock | View |
| LS-HF200-03X11 | 0.3x, WD 200 mm, 1.1", C-mount | $539.00 | 5 in stock | View |
| LS-HF200-0275X11 | 0.275x, WD 200 mm, 1.1", C-mount | $569.00 | 5 in stock | View |
| LS-HF230-025X11 | 0.25x, WD 230 mm, 1.1", C-mount | $599.00 | 5 in stock | View |
| LS-HF200-022X11 | 0.22x, WD 200 mm, 1.1", C-mount | $639.00 | 5 in stock | View |
| LS-HF250-02X11 | 0.2x, WD 250 mm, 1.1", C-mount | $679.00 | 3 in stock | View |
| LS-HF230-0172X11 | 0.172x, WD 230 mm, 1.1", C-mount | $749.00 | 3 in stock | View |
| LS-HF250-0153X11 | 0.153x, WD 250 mm, 1.1", C-mount | $809.00 | 2 in stock | View |
| LS-HF300-013X11 | 0.13x, WD 300 mm, 1.1", C-mount | $899.00 | 5 in stock | View |
| LS-HF320-011X11 | 0.11x, WD 320 mm, 1.1", C-mount | $1,019.00 | 4 in stock | View |
| LS-HF410-0078X11 | 0.078x, WD 410 mm, 1.1", C-mount | $1,329.00 | 2 in stock | View |
