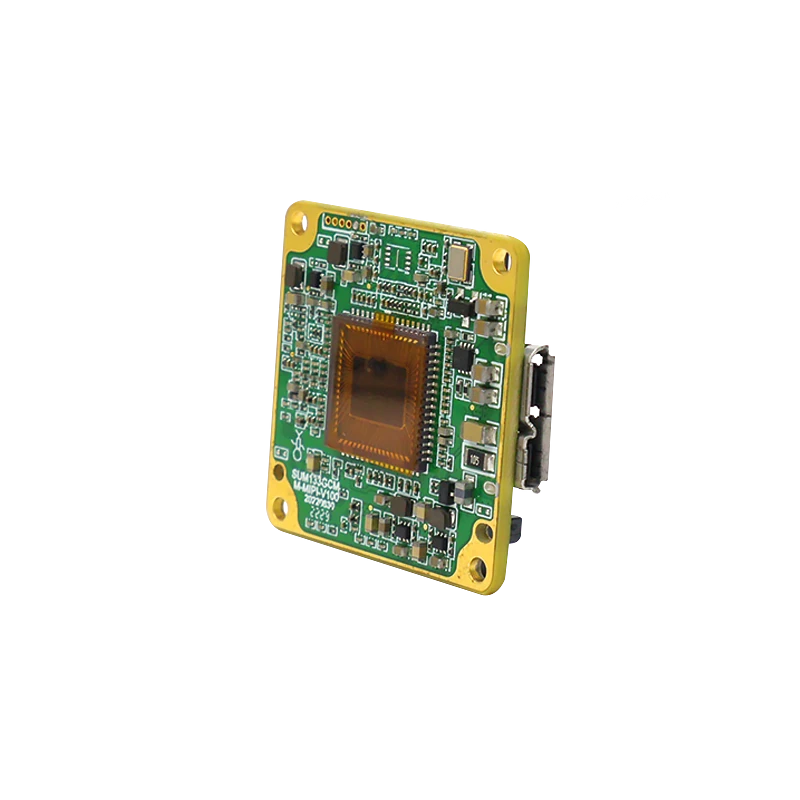

USB3.0 board camera / module (BL-AU), 1.3 MP, USB3, Color (LS-BL-AU133GC/M-B)
Model LS-BL-AU133GC/M-B
USB3.0 single board modules designed to be compatible with the USB3 Vision and GenICam standards and with LabVIEW, Halcon, VisionPro and other mainstream vision software. Applicable to electronics, semiconductor, factory automation, food and beverage, medical packaging and image measurement.
Features
- Single board design, small size, ultra-thin
- Embedded system integration is more convenient and integrated
- Supports 16bit gray and 48bit color lossless format output
- Multiple options: single board / C interface / M12 interface
- Programmable IO, supports external trigger and flash synchronous photography
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
- Comes with programmable IO.
- Supports 16bit mono and 48bit color lossless format output.
- Multiple options are available:single board,C interface,M12 interface.
- Supports PC Linux system and ARM Linux system.
- Compatible with Vision protocol and other brand vision software.
Specifications
| Model | LS-BL-AU133GC/M-B |
|---|---|
| Acquisition mode | Continuous / soft trigger / hard trigger |
| Frame cache | 128MB |
| User defined data | 2KB |
| Lens interface | Veneer (bare board) / C-Mount / M12 |
| Power supply | 5V |
| Weight | Veneer: <10g; C-Mount/M12-Mount: <30g |
| Overall dimension | C-Mount/M12-Mount: 35x35x8.6mm (without lens holder and external interface); Veneer: 32.5x32.5x1.6mm (without sensor and external interface) |
| Visual standards protocol | USB3.0Vision, GenICam |
| Data interface | USB3.0 MicroB |
| Operating system | WIINXP, WIN7/8/10 32@64 Bit system, Linux and arm linux driver, Android platform driver, Mac OS System |
| Driver | DirectShow component Halcon special component LabVIEW special driver OCX component Twain component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Operating temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| GPIO | 2 bidirectional IO, each IO has input or output function, which can be configured as input/output/trigger/flash in IO control |
| Suffix options | T-B: module (bare board), Recommended; -T-C: C-Mount, Recommended; -T-M: M12-Mount, Recommended |
| Connector pinout (Port A) | 1 Red NC; 2 Black GND (GPIO common port); 3 Yellow GPIO1+ (bidirectional IO 1, default trigger); 4 Green GPIO2+ (bidirectional IO 2, default flash mode) |
| E ff ective pixels | 1.3MP |
| Sensor | CMOS |
| Shutter | Global |
| Max resolution | 1280x1024 |
| Pixel size | 4um BSI |
| Frame rate(FPS) | 221.25 |
| Target size | 1/2.7" |
| Maximum gain | 6 |
| Exposure time range (ms) | 0.0043~35.2 |
| Color | Color |
| Sensor (product page) | 1/2.7"CMOS |
| Color/Mono | Color/Mono |
| Resolution | 1.3MP |
| Frame rate | [email protected] |
| Output pixel width | 8 bits |
| Sensitivity | 8V/Lux·s |
| Exposure time(ms) | 0.0043~35.2 |
| AD width | 10bit |
| Frame buffer | 128MB |
| Camera custom data | 2KB |
| Video output format | Bayer BG 8bit / Mono 8bit |
| Trigger mode | Continuous/software triggered/hardware triggered |
| SNR | 40dB |
| Lens mount | B |
| Power | <2W |
| Dimensions | 35x36.8x27.9mm (excluding lens base and rear shell interface) |
| Temperature | Working temperature:0~50° Storage temperature:-30~60° |
| Drivers | Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component |
| Programming language package | Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more |
| Mono / colour | Color |
| Voltage | 5V |
