Area scan cameras

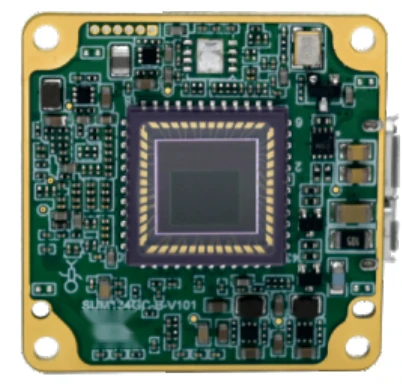

USB3.0 board camera / module (BL-AU), 1.3 MP, USB3, Color/Mono (LS-BL-AU134GC/M)
Model LS-BL-AU134GC/M
USB3.0 single board modules designed to be compatible with the USB3 Vision and GenICam standards and with LabVIEW, Halcon, VisionPro and other mainstream vision software. Applicable to electronics, semiconductor, factory automation, food and beverage, medical packaging and image measurement.
Features
- Single board design, small size, ultra-thin
- Embedded system integration is more convenient and integrated
- Supports 16bit gray and 48bit color lossless format output
- Multiple options: single board / C interface / M12 interface
- Programmable IO, supports external trigger and flash synchronous photography
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Specifications
| Model | LS-BL-AU134GC/M |
|---|---|
| Acquisition mode | Continuous / soft trigger / hard trigger |
| Frame cache | 128MB |
| User defined data | 2KB |
| Lens interface | Veneer (bare board) / C-Mount / M12 |
| Power supply | 5V |
| Weight | Veneer: <10g; C-Mount/M12-Mount: <30g |
| Overall dimension | C-Mount/M12-Mount: 35x35x8.6mm (without lens holder and external interface); Veneer: 32.5x32.5x1.6mm (without sensor and external interface) |
| Visual standards protocol | USB3.0Vision, GenICam |
| Data interface | USB3.0 MicroB |
| Operating system | WIINXP, WIN7/8/10 32@64 Bit system, Linux and arm linux driver, Android platform driver, Mac OS System |
| Driver | DirectShow component Halcon special component LabVIEW special driver OCX component Twain component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Operating temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| GPIO | 2 bidirectional IO, each IO has input or output function, which can be configured as input/output/trigger/flash in IO control |
| Suffix options | T-B: module (bare board), Recommended; -T-C: C-Mount, Recommended; -T-M: M12-Mount, Recommended |
| Connector pinout (Port A) | 1 Red NC; 2 Black GND (GPIO common port); 3 Yellow GPIO1+ (bidirectional IO 1, default trigger); 4 Green GPIO2+ (bidirectional IO 2, default flash mode) |
| Resolution@frame rate | 1280×[email protected] |
| Shutter method | Global |
| Pixels | 1.3MP |
| Pixel size | 4.8μm×4.8μm |
| Sensor type | 1/2" CMOS |
| Pixel bit depth | 8bit |
| Maximum gain (multiple) | 16.5 |
| Exposure time range (ms) | 0.0045~584.4 |
| Sensitivity | 7.3 V/lux-s 540nm |
| Sensor format | 1/2" |
| Mono / colour | Color/Mono |
| Voltage | 5V |
Applications
- Electronics
- Semiconductor
- Factory automation
- Food and beverage
- Medical packaging
- Image measurement
