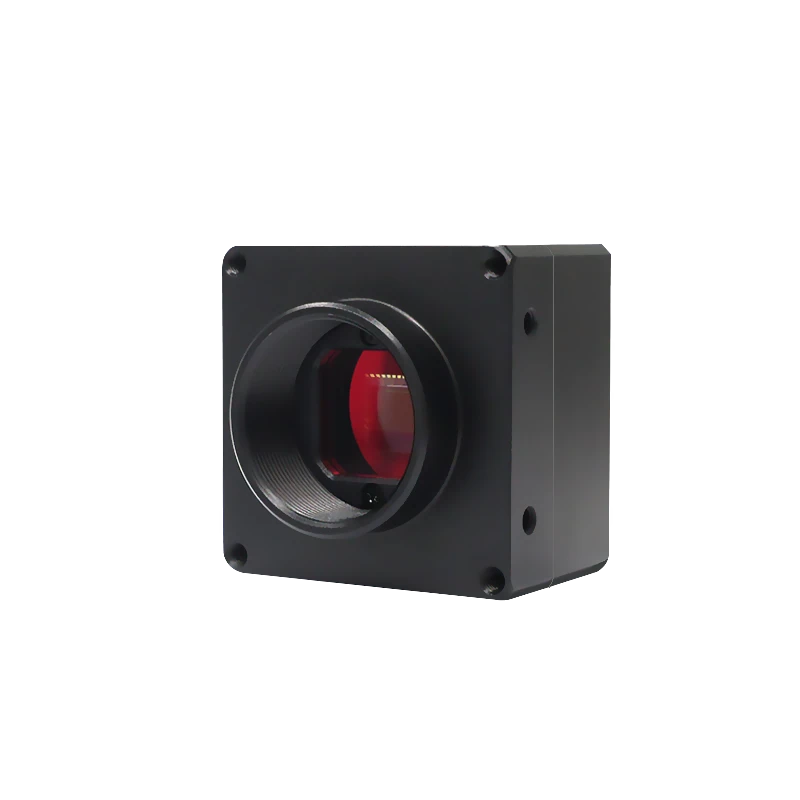

GigE board camera / module (BL-...-GE), 5.1 MP, GigE, Color/Mono (LS-BL-500RC-GE/M)
Model LS-BL-500RC-GE/M
Single-board Gigabit Ethernet camera modules designed to be compatible with GigE Vision and GenICam standards, fully compatible with mainstream vision software such as LabVIEW, Halcon and VisionPro. Suitable for electronics/semiconductor, factory automation, food and beverage, pharmaceutical packaging and image measurement.
Features
- Single board design, small size, ultra-thin
- Embedded system integration is more convenient and integrated
- Supports 16bit gray and 48bit color lossless format output
- Multiple options available: single board / C interface / M12 interface
- Programmable IO, supports external trigger and flash synchronous photography
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
- Comes with programmable IO.
- Supports 16bit mono and 48bit color lossless format output.
- Multiple options are available:single board,C interface,M12 interface.
- Supports PC Linux system and ARM Linux system.
- Compatible with Vision protocol and other brand vision software.
Specifications
| Model | LS-BL-500RC-GE/M |
|---|---|
| Interface | GigE (GigE Vision, GenICam) |
| Single board module size | 40 x 40 mm board (drawing) |
| Housed camera size | 43 x 43 mm front, C-mount (C Mouth 1-32UN, depth 8) (drawing) |
| Sensor | 1/2.7" CMOS |
| Shutter | Rolling |
| Color/Mono | Color/Mono |
| Pixel Size | 2.0umx2.0um |
| Resolution | 5MP |
| Frame rate | 2608x1958@24FPS |
| Output pixel width | 10bit |
| Sensitivity | 2500mV/lux·s@540nm |
| GPIO | 1 optical coupling isolated input, 2 optical coupling isolated output |
| Maximum gain | 16 |
| Exposure time(ms) | 0.021~1376.2 |
| AD width | 12bit |
| Frame buffer | 128MB |
| Camera custom data | 2KB |
| Video output format | Bayer GR 8bit/Mono 8bit |
| SNR | 39.5dB |
| Visual standard protocol | GigE Vision V1.2 GenICam |
| Lens mount | C |
| Data interface | GigE |
| Power supply | 12~24V |
| Power | 2.66W |
| Dimensions | 43x43x28.7mm (excluding lens base and rear shell interface) |
| Weight | 75g |
| Temperature | Working temperature:0~50° Storage temperature:-30~60° |
| Operating system | WINXP, WIN7/8/10 32-bit & 64-bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
| Drivers | Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component |
| Programming language package | Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more |
| Mono / colour | Color/Mono |
| Voltage | 12~24V |
Applications
- Electronics / semiconductor
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
