Area scan cameras
GigE board camera / module (BL-...-GE), 1.3 MP, GigE, Color/Mono (LS-BL-134GC/M-GE)

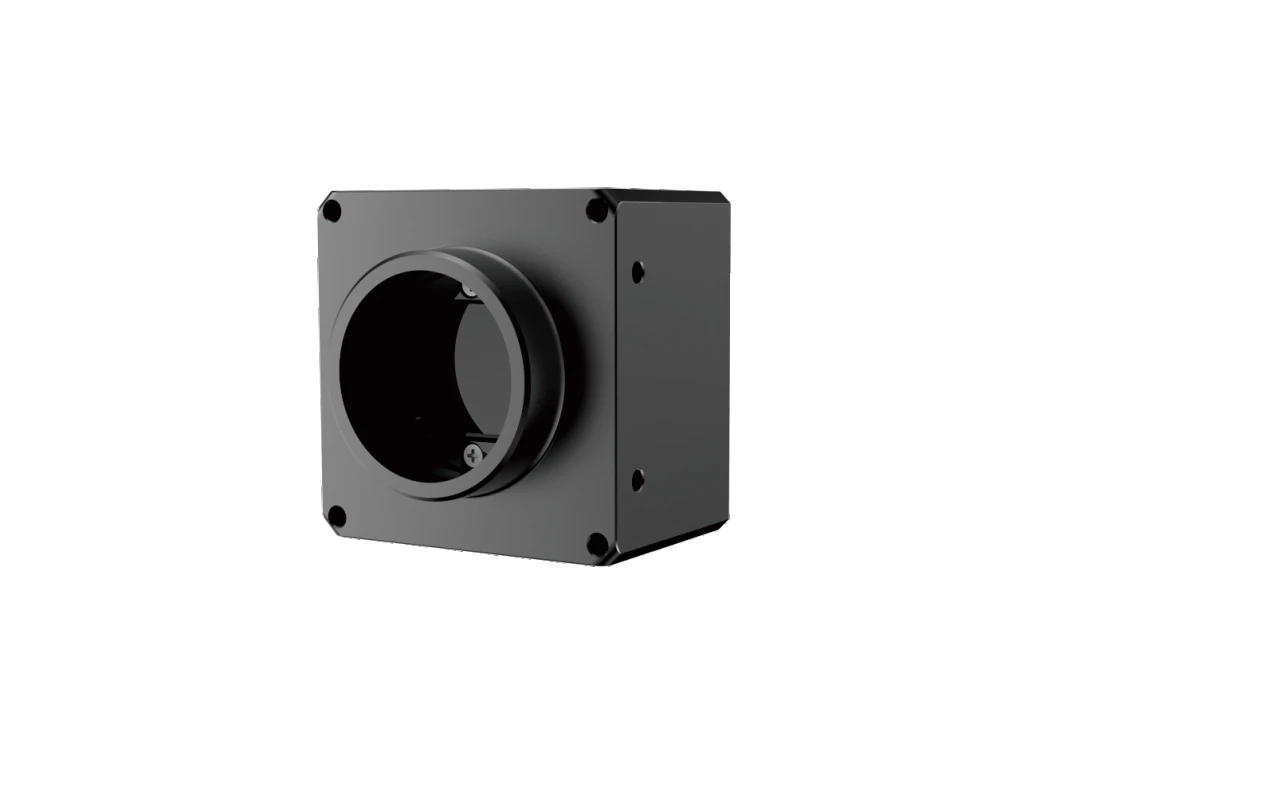

Model LS-BL-134GC/M-GE
Single-board Gigabit Ethernet camera modules designed to be compatible with GigE Vision and GenICam standards, fully compatible with mainstream vision software such as LabVIEW, Halcon and VisionPro. Suitable for electronics/semiconductor, factory automation, food and beverage, pharmaceutical packaging and image measurement.
Features
- Single board design, small size, ultra-thin
- Embedded system integration is more convenient and integrated
- Supports 16bit gray and 48bit color lossless format output
- Multiple options available: single board / C interface / M12 interface
- Programmable IO, supports external trigger and flash synchronous photography
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Specifications
| Model | LS-BL-134GC/M-GE |
|---|---|
| Interface | GigE (GigE Vision, GenICam) |
| Single board module size | 40 x 40 mm board (drawing) |
| Housed camera size | 43 x 43 mm front, C-mount (C Mouth 1-32UN, depth 8) (drawing) |
| Resolution@frame rate | 1280×[email protected] |
| Shutter mode | Global Shutter |
| Effective pixel | 1.3MP |
| Pixel size | 4.8μm×4.8μm |
| Sensor | 1/2"CMOS PYTHON |
| Dynamic range | 60dB |
| Ad Width | 12bit |
| Video output format | Color: Bayer GB 8/12bit; Mono: Mono 8/12bit |
| Maximum gain (multiple) | 16.5 |
| Exposure time range (ms) | 0.008~1048.6 |
| Pixel bit depth | 10bit |
| Mono / colour | Color/Mono |
| Shipping weight | 0.31 kg |
Applications
- Electronics / semiconductor
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
