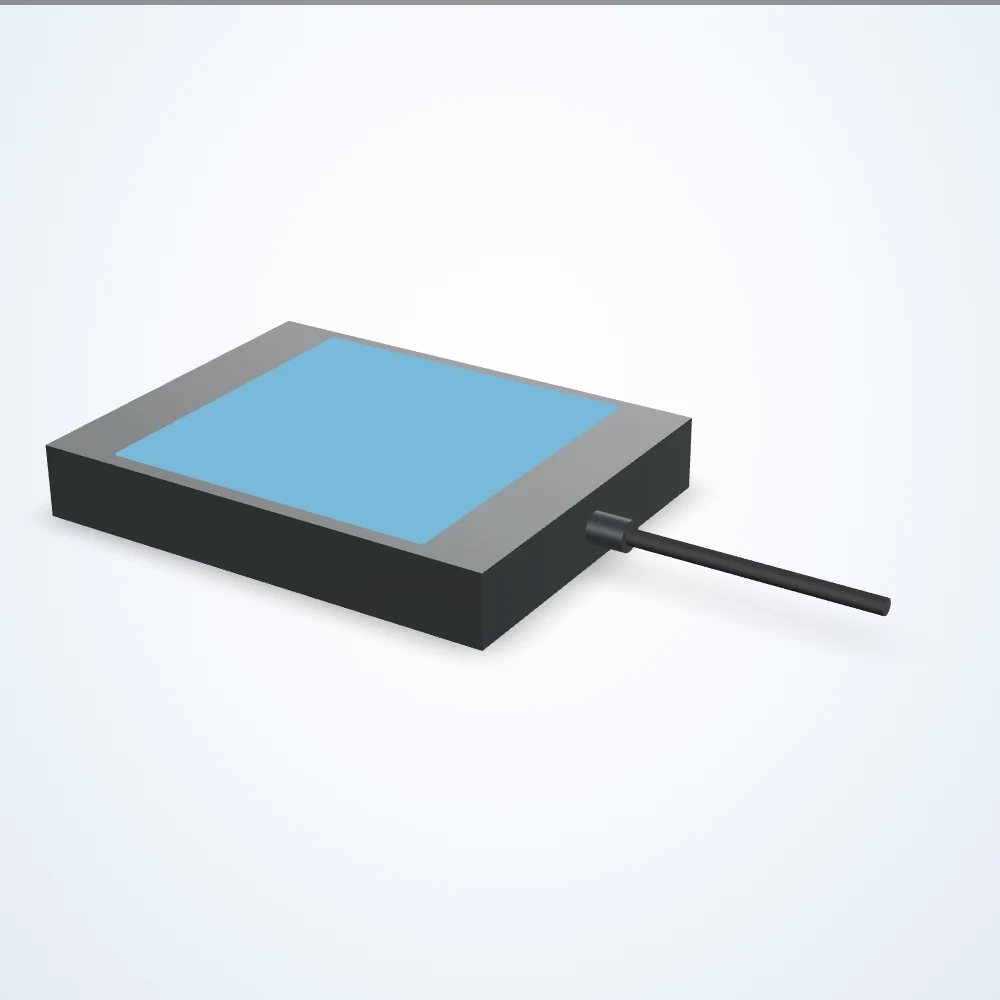

Backlight, 111 x 111 mm lit area, 470nm Blue, driver included, strobe trigger input Constant On Only (LS-BKL-0390)

Model LS-BKL-0390

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 111 x 111 mm; 24 VDC supply; connection: flying leads.

Datasheet (PDF) - LS-BKL-0390

Specifications

Model	LS-BKL-0390
Colour	470nm Blue
Lit length (mm)	111
Lit width (mm)	111
Length (mm)	157
Width (mm)	122.2
Height (mm)	24
Voltage	24 VDC
Connector	Flying Leads
Connection at light	Hardwired
Cable length (mm)	2000
Driver included	Included
Driver location	In Line
Intensity control	Analog Voltage
Operating modes	Constant On
Strobe trigger input	Constant On Only
Operating temperature	up to 60 °C
Housing	Aluminum
Mounting	T-Slot Channel
Collimated	Not Collimated
Daisy chain	No
Diffused	Not Diffused
Direct connect	No
Maximum constant on current (ma)	891
Maximum duty cycle (%)	100
Maximum input power constant on (w)	21.4
Polarized	Not Polarized
Wavelength	470nm Blue
Compliance	CE
