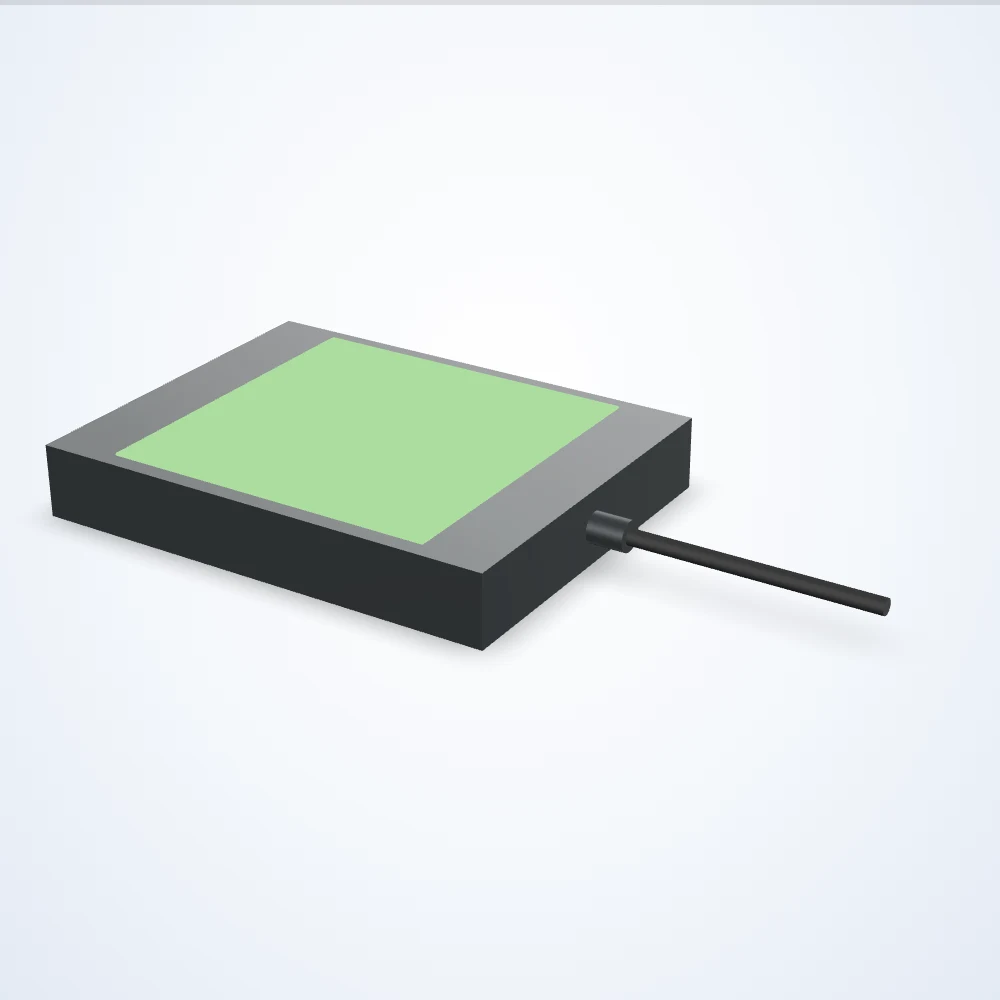

Backlight, 111 x 111 mm lit area (LS-BKL-0394)
Model LS-BKL-0394
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 111 x 111 mm; 24 VDC supply; connection: flying leads.
Specifications
| Model | LS-BKL-0394 |
|---|---|
| Colour | 530nm Green |
| Lit length (mm) | 111 |
| Lit width (mm) | 111 |
| Length (mm) | 157 |
| Width (mm) | 122.2 |
| Height (mm) | 24 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | iCS2 - IC |
| Maximum constant on current (ma) | 891 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 21.4 |
| Polarized | Not Polarized |
| Wavelength | 530nm Green |
| Compliance | CE |
