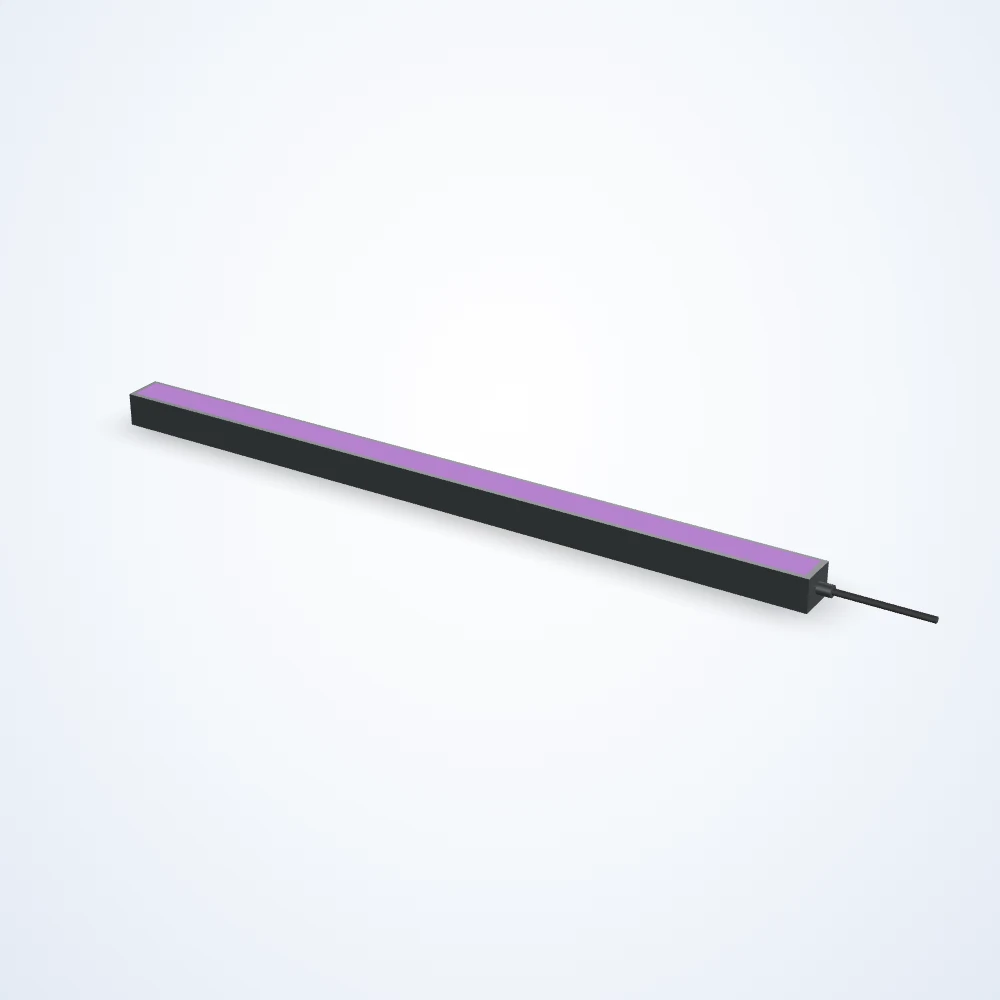

Rendered illustration: the actual product may differ in appearance.
Bar lights
Bar light, 627.9 mm lit length (LS-BAR-0111-L4)
Model LS-BAR-0111-L4
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 627.9 x 25.9 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (96 configurations) and request a quote.
Specifications
| Model | LS-BAR-0111-L4 |
|---|---|
| Lit length (mm) | 627.9 |
| Lit width (mm) | 25.9 |
| Length (mm) | 637.5 |
| Width (mm) | 33.8 |
| Height (mm) | 28.4 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | Through Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS4 - I4 (by configuration) |
| Maximum constant on current (ma) | 1455 / 1556 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 34.9 / 37.3 (by configuration) |
| Maximum input power overcurrent strobe (w) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 20 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bar light, 627.9 mm lit length series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0111-L1 | Price on request | 687 in stock | View | |
| LS-BAR-0111-L2 | Price on request | 662 in stock | View | |
| LS-BAR-0111-L3 | Price on request | 670 in stock | View | |
| LS-BAR-0111-L5 | Price on request | 338 in stock | View | |
| LS-BAR-0111-L6 | Price on request | 174 in stock | View | |
| LS-BAR-0111-L7 | Price on request | 166 in stock | View | |
| LS-BAR-0111-L8 | Price on request | 174 in stock | View | |
| LS-BAR-0111-L9 | Price on request | 164 in stock | View | |
| LS-BAR-0111-L10 | Price on request | 165 in stock | View | |
| LS-BAR-0111-L11 | Price on request | 167 in stock | View | |
| LS-BAR-0111-L12 | Price on request | 174 in stock | View | |
| LS-BAR-0111-L13 | Price on request | 170 in stock | View | |
| LS-BAR-0111-L14 | Price on request | 163 in stock | View | |
| LS-BAR-0111-L15 | Price on request | 172 in stock | View | |
| LS-BAR-0111-L16 | Price on request | 168 in stock | View |
