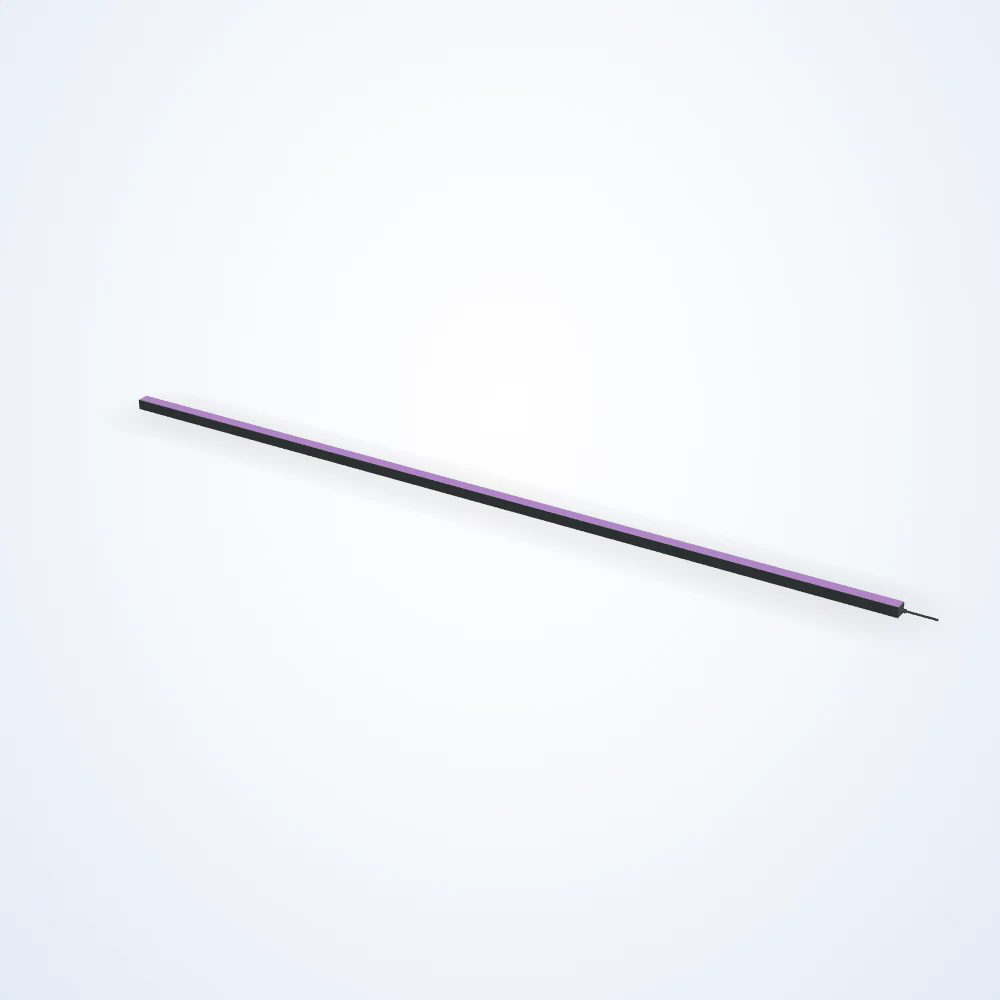

Rendered illustration: the actual product may differ in appearance.
Bar lights
2313.94 x 33.8 mm bar light (LS-BAR-0111-L15)
Model LS-BAR-0111-L15
2313.94 x 33.8 mm bar light. Lit area 2304.29 x 25.9 mm. Connection: Flying Leads. Available in 48 configurations (color, lens angle); choose one below and request a quote.
Specifications
| Model | LS-BAR-0111-L15 |
|---|---|
| Active Length (mm) | 2304.29 |
| Active Width (mm) | 25.9 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | No Driver Required |
| Driver Location | No Driver |
| Driver Nomenclature | 24V |
| Height (mm) | 28.4 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 2313.94 |
| Maximum Constant On Current (mA) | 5648 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 135.6 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Through Holes |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 7.61 |
| Product Weight (Lbs) | 16.78 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 33.8 |
