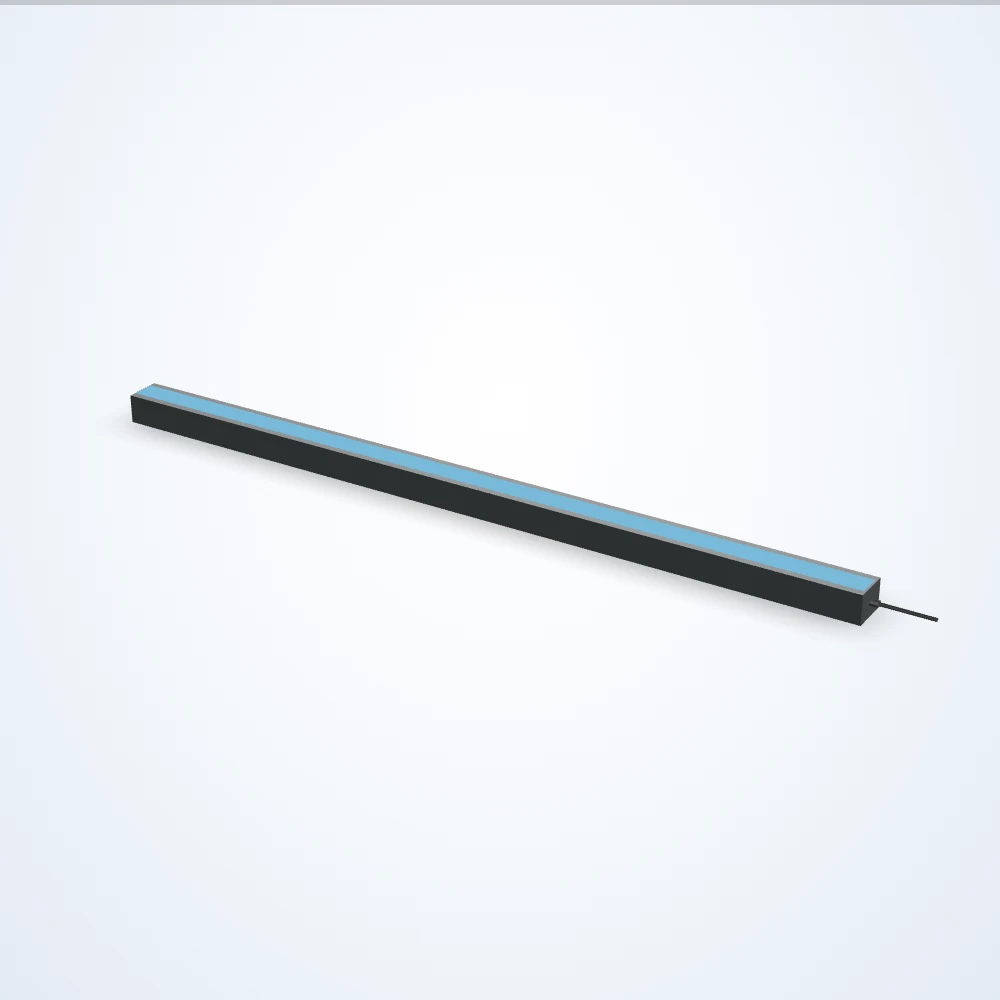

Bar light, 1223 mm lit length (LS-BAR-0110-L8)
Model LS-BAR-0110-L8
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 1223 x 35.3 mm; 24 VDC supply. Choose colour, lens / beam angle, connector, driver included, driver location below (594 configurations) and request a quote.
Specifications
| Model | LS-BAR-0110-L8 |
|---|---|
| Lit length (mm) | 1223 |
| Lit width (mm) | 35.3 |
| Length (mm) | 1230 |
| Width (mm) | 57.3 |
| Height (mm) | 45.2 |
| Voltage | 24 VDC |
| Connection at light | Connectorized / Hardwired (by configuration) |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / EC / ES (by configuration) |
| Maximum constant on current (ma) | 113 / 145 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 99999 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 2.7 / 3.5 (by configuration) |
| Maximum input power overcurrent strobe (w) | 99999 (by configuration) |
| Maximum overcurrent strobe latency (us) | 99999 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger voltage (v) | 4-24 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
