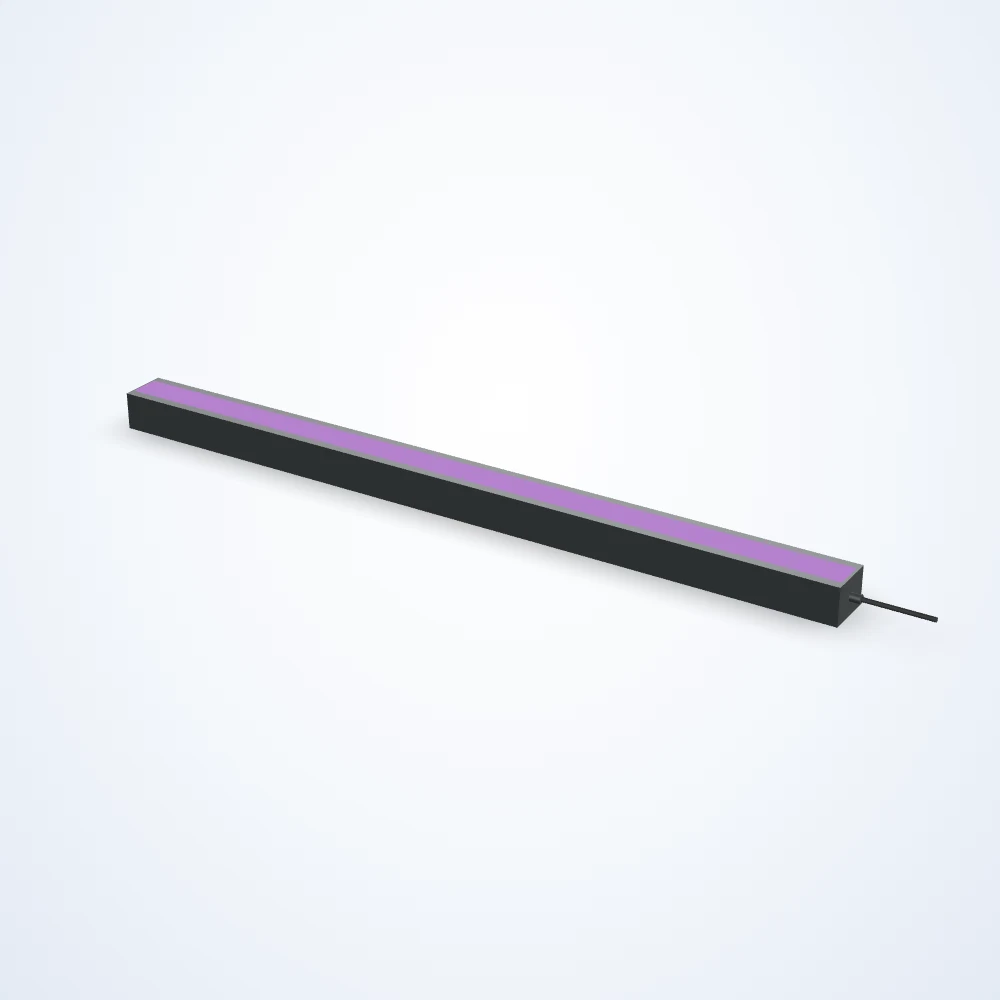

923.8 x 57.3 mm bar light (LS-BAR-0110-L6)

Name: 923.8 x 57.3 mm bar light (LS-BAR-0110-L6)
Brand: LumaSpec Vision
SKU: LS-BAR-0110-L6

Model LS-BAR-0110-L6

923.8 x 57.3 mm bar light. Lit area 917.4 x 35.3 mm. Available in 774 configurations (color, connector type, connectorized at light, driver included); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

ColorConnector TypeConnectorized At LightDriver IncludedDriver LocationDriver NomenclatureIntensity Adjustment TypeLens AngleMaximum Constant On Current (mA)Maximum Current (Overcurrent Strobe) (mA)Maximum Input Power Constant On (W)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Latency (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Voltage (V)

Configuration LS-BAR-0110-0567 of 774

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-BAR-0110-L6

Specifications

Model	LS-BAR-0110-L6
Active Length (mm)	917.4
Active Width (mm)	35.3
Collimated	Not Collimated
Compliances	CE, IEC 62471, RoHS
Daisy Chain	No
Direct Connect	No
Height (mm)	45.2
Housing Material	Aluminum
Length (mm)	923.8
Maximum Duty Cycle (%)	100
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	Tapped Holes
Polarized	Not Polarized
Product Weight (Kg)	1.5
Product Weight (Lbs)	3.32
Strobe Trigger Input	Constant On Only
Voltage	24 VDC
Width (mm)	57.3

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 923.8 x 57.3 mm bar light series

Model	Price	Availability	Link
LS-BAR-0110-L1	Price on request	2748 in stock	View
LS-BAR-0110-L2	Price on request	2686 in stock	View
LS-BAR-0110-L3	Price on request	2659 in stock	View
LS-BAR-0110-L4	Price on request	2741 in stock	View
LS-BAR-0110-L5	Price on request	2706 in stock	View
LS-BAR-0110-L7	Price on request	2752 in stock	View
LS-BAR-0110-L8	Price on request	2068 in stock	View
LS-BAR-0110-L9	Price on request	2082 in stock	View
LS-BAR-0110-L10	Price on request	2073 in stock	View
LS-BAR-0110-L11	Price on request	2107 in stock	View
LS-BAR-0110-L12	Price on request	2097 in stock	View
LS-BAR-0110-L13	Price on request	2107 in stock	View
LS-BAR-0110-L14	Price on request	2083 in stock	View
