Bar lights

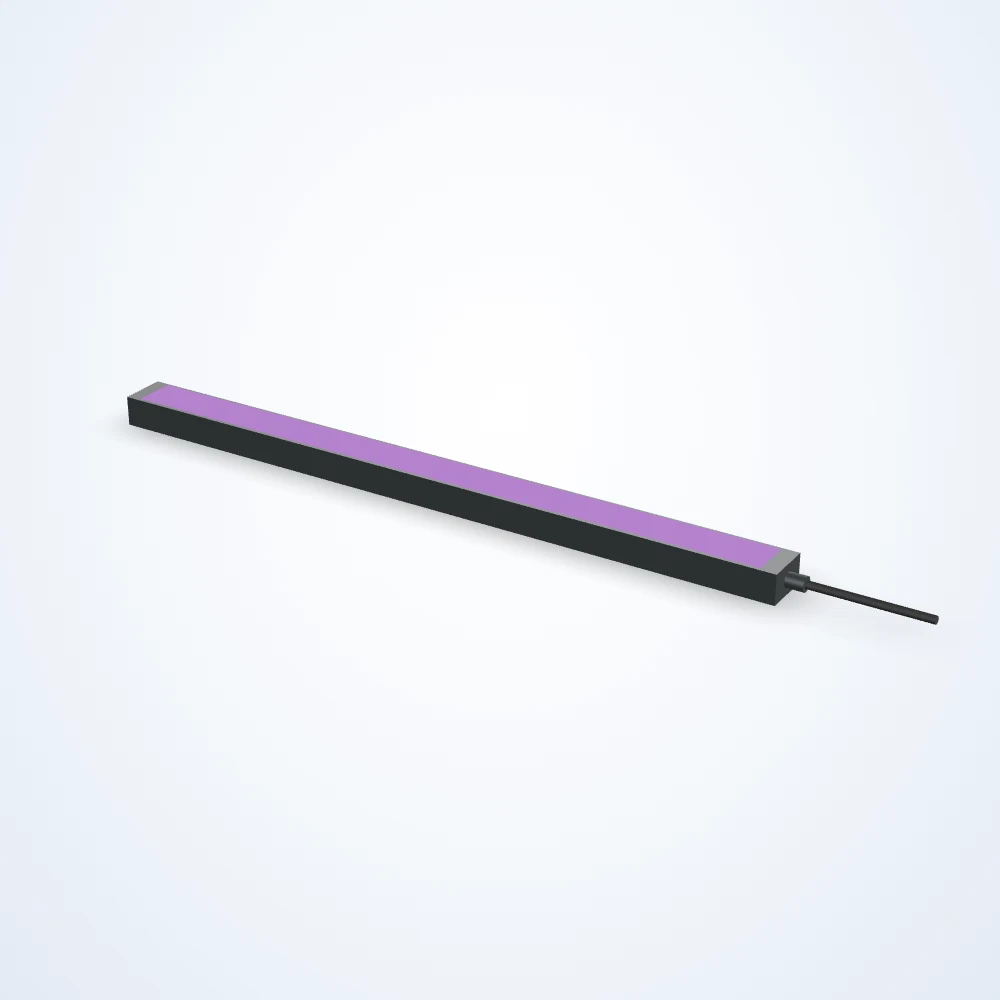

Bar light, 464.1 mm lit length, 32.2 mm wide (LS-BAR-0009)
Model LS-BAR-0009
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 464.1 x 27.2 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (26 configurations) and request a quote.
Specifications
| Model | LS-BAR-0009 |
|---|---|
| Lit length (mm) | 464.1 |
| Lit width (mm) | 27.2 |
| Length (mm) | 486.4 |
| Width (mm) | 32.2 |
| Height (mm) | 20.5 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Maximum constant on current (ma) | 1149 / 1532 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 27.6 / 36.8 (by configuration) |
| Maximum input power overcurrent strobe (w) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 20 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bar light series, 20.5 mm high, Flying Leads series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0001 | 57.7 x 27.2 mm | Price on request | 177 in stock | View |
| LS-BAR-0002 | 108.5 x 27.2 mm | Price on request | 185 in stock | View |
| LS-BAR-0003 | 159.3 x 27.2 mm | Price on request | 183 in stock | View |
| LS-BAR-0004 | 210.1 x 27.2 mm | Price on request | 188 in stock | View |
| LS-BAR-0005 | 260.9 x 27.2 mm | Price on request | 233 in stock | View |
| LS-BAR-0006 | 311.7 x 27.2 mm | Price on request | 237 in stock | View |
| LS-BAR-0007 | 362.5 x 27.2 mm | Price on request | 239 in stock | View |
| LS-BAR-0008 | 413.3 x 27.2 mm | Price on request | 90 in stock | View |
| LS-BAR-0010 | 514.9 x 27.2 mm | Price on request | 88 in stock | View |
