Rendered illustration: the actual product may differ in appearance.
Bar lights

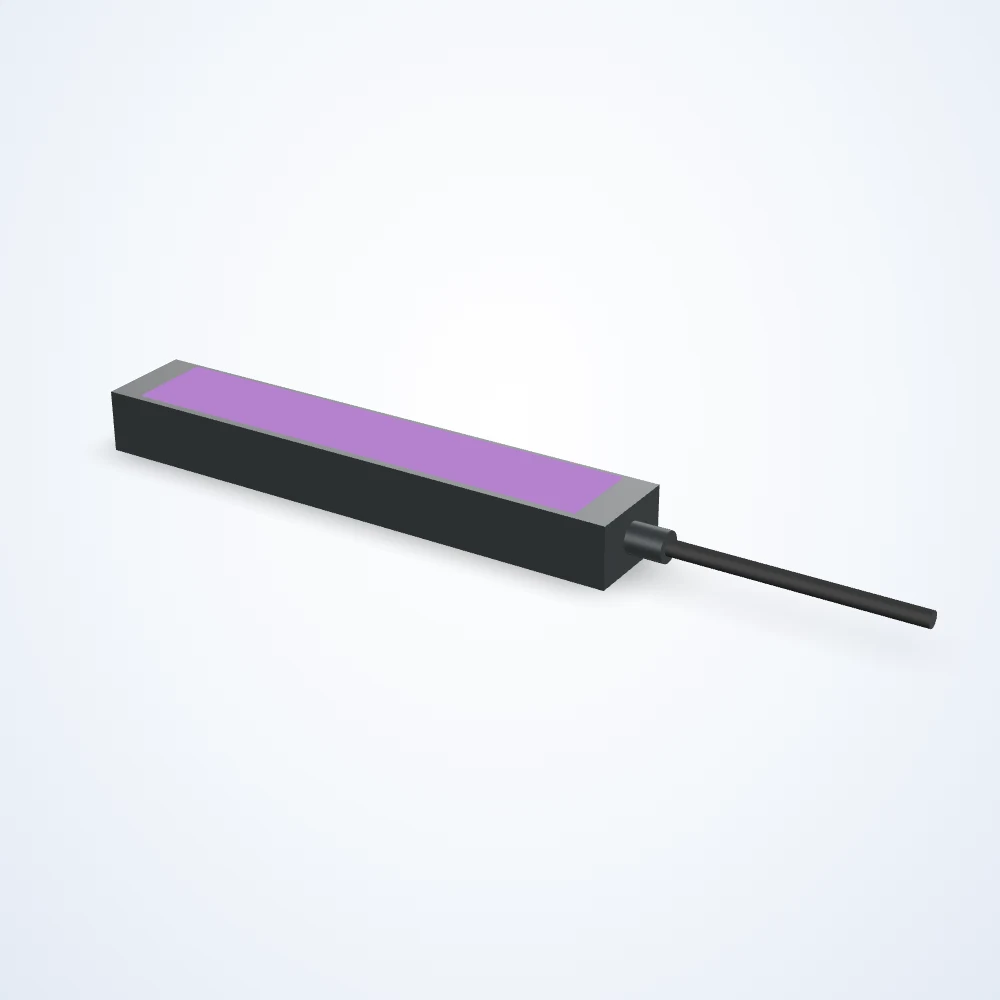

181.61 x 32.2 mm bar light (LS-BAR-0003)
Model LS-BAR-0003
181.61 x 32.2 mm bar light. Lit area 159.26 x 27.2 mm. Connection: Flying Leads. Available in 52 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.
Specifications
| Model | LS-BAR-0003 |
|---|---|
| Active Length (mm) | 159.26 |
| Active Width (mm) | 27.2 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 20.5 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 181.61 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.94 |
| Product Weight (Lbs) | 2.08 |
| Voltage | 24 VDC |
| Width (mm) | 32.2 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
