Special lights

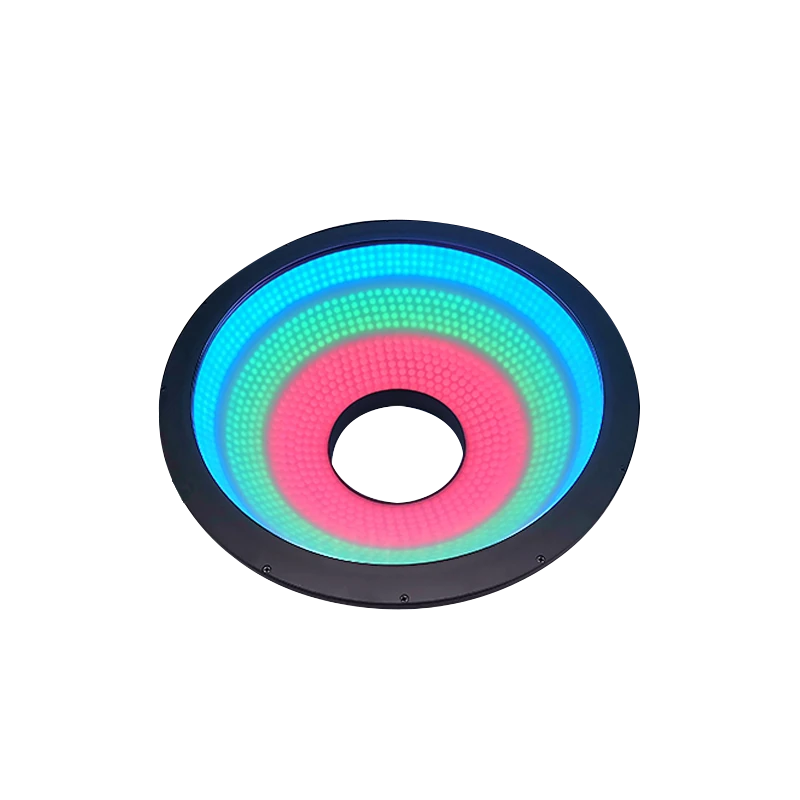

250 mm AOI light (LS-AOI-250)
Model LS-AOI-250
AOI light consists of uniformly distributed LED light-emitting units. Support custom lighting color, shape size and installation mode, etc.
Features
- Maximum luminescence outer diameter:120mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for circuit board solder detection, multi-level object detection, multi-color character detection, etc.
Specifications
| Model | LS-AOI-250 |
|---|---|
| luminescence outer diameter(Error ±5mm) | 250mm |
| Voltage(V) | 24 |
| Power(W) Red | 10 |
| Power(W) Blue | 16 |
| Power(W) Green | 16 |
| Power(W) White | 16 |
| LED Type | SMD |
| Weight(g) | ≈1700 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the AOI light series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-AOI-120 | 120 mm | $489.00 | 5 in stock | View |
| LS-AOI-134 | 134 mm | $489.00 | 5 in stock | View |
| LS-AOI-150 | 150 mm | $489.00 | 2 in stock | View |
| LS-AOI-180 | 180 mm | $489.00 | 3 in stock | View |
| LS-AOI-211 | 211 mm | $489.00 | 5 in stock | View |
