Special lights

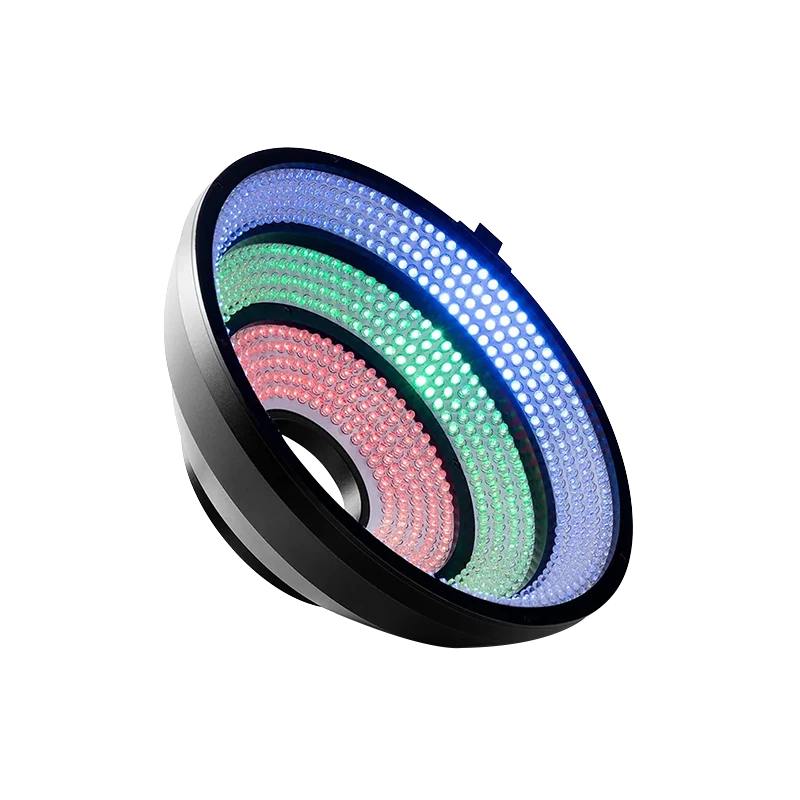

150 mm AOI light (LS-AOI-150)
Model LS-AOI-150
AOI light consists of uniformly distributed LED light-emitting units. Support custom lighting color, shape size and installation mode, etc.
Features
- Maximum luminescence outer diameter:120mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for circuit board solder detection, multi-level object detection, multi-color character detection, etc.
Specifications
| Model | LS-AOI-150 |
|---|---|
| luminescence outer diameter(Error ±5mm) | 150mm |
| Voltage(V) | 24 |
| Power(W) Red | 4 |
| Power(W) Blue | 12 |
| Power(W) Green | 9 |
| Power(W) White | — |
| LED Type | SMD |
| Weight(g) | ≈750 |
| Category | AOI light |
| Emitting Color | Red/Blue/Green |
| Wavelength | Red: 620-635nm; Blue: 465-470nm; Green: 525-530nm |
| Color-temperature | — |
| Power | Red: 4W max.; Blue: 12W max.; Green: 9W max. |
| Input Volt | DC 24V |
| Cable length | 0.5m |
| Terminal Plug | Flat head 3PIN2 pin |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Shell Material | Aluminum Alloy (Oxidative blackened surface) |
| Cooling | Natural air cooling |
| Dimensions | dia. 150mmxdia. 36mmxH75mm |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| ElectricalIn Sulation Capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Operating Temperatureand Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
| Warranty Period | Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge |
| Value Added Services | One year free technical support |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
| Matingcable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the AOI light series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-AOI-120 | 120 mm | $489.00 | 5 in stock | View |
| LS-AOI-134 | 134 mm | $489.00 | 5 in stock | View |
| LS-AOI-180 | 180 mm | $489.00 | 3 in stock | View |
| LS-AOI-211 | 211 mm | $489.00 | 5 in stock | View |
| LS-AOI-250 | 250 mm | $489.00 | 3 in stock | View |
