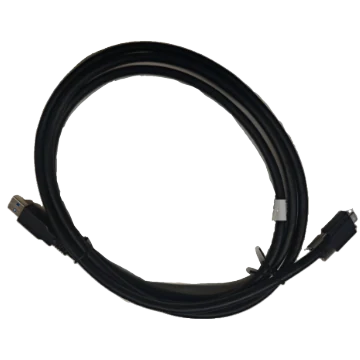

Camera Data Cable, Type-C male, screw locking to A male, 1 m (LS-ACU3-CMS-WP-AM-ST-1M)
Model LS-ACU3-CMS-WP-AM-ST-1M
Camera Data Cable, Type-C male, screw locking to A male, 1 m. USB3.0 standard cable for data transmission and power to HDMI measurement microscope cameras; available in multiple lengths
Features
- USB3.0 standard cable for data transmission and power to HDMI measurement microscope cameras; available in multiple lengths
Specifications
| Model | LS-ACU3-CMS-WP-AM-ST-1M |
|---|---|
| End A connector | Type-C male, screw locking |
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Length | 1 m |
| Cable mechanical | (25AWG*1P+AD)*2C+26AWG*1P+20AWG*2C |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 82 mm |
| Ingress protection | Type-C end meets IP67 when mated with the camera |
| Applicable scenario | Static scenes |
| Max. voltage | 5 VDC |
| Working temperature | -20 °C~ 80 °C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
