Light controllers

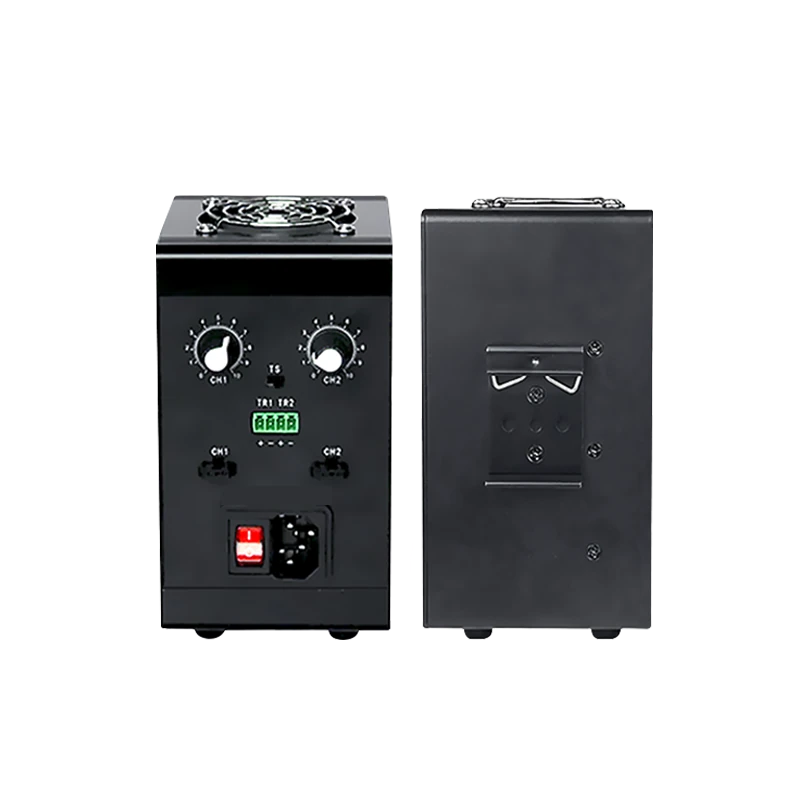

Two / four channel standard analog controller (ACS2.0 series), 2 ch, 6 W (LS-ACS2.0-2C003W-5PS)
Model LS-ACS2.0-2C003W-5PS
Second generation standard analog constant-current controller with 2 or 4 channels, brightness adjusted by potentiometer (electrodeless), passive external trigger, 100-220VAC input. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
Features
- Exquisite appearance
- Easy installation
- Add guide buckle (DIN rail clip)
- Easy operation
- Operation panel front
- Noiseless fan
- High power
- Strong heat dissipation
- Constant current stable output/no strobe
- Electrodeless brightness adjustment by potentiometer
- 2 trigger modes: internal trigger and external trigger.
- Abnormal light source protection.
- Automatic adaptation of light source power.
- Automatic memory function, no data loss during power outage.
- Very stable output and no flicker.
Specifications
| Model | LS-ACS2.0-2C003W-5PS |
|---|---|
| Control mode | Constant current |
| Input voltage | 100-220VAC |
| Output voltage range | DC14V~24V |
| Adjust brightness level range | Electrodeless (adjust by potentiometer) |
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger) |
| External trigger frequency | <1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz) |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Stand-by power consumption | <3W |
| Boundary dimension (mm) | 135x85x158mm (LxWxH) |
| Weight | 0.9Kg |
| Type | Analog Standard |
| Current | DC |
| Channel | 2 |
| Input Volt | AC220V |
| Output Volt | 5V |
| Output Power Per Channel | 3W |
| Output Power Total Power | 6W |
| Trigger | Yes |
| Remarks | — |
| Type (product page) | Analog Standard Controller |
| Input Volt (product page) | 100-200VAC |
| Output Volt (product page) | DC 5V |
| Single channel output power | 3W |
| Trigger (product page) | Passive triggering |
| Operating temperature | 10~50 ℃ |
| Operating humidity | 20~80% |
| Storage temperature | 20~70℃ |
| Storage humidity | 10~90% |
| Dimensions | 135×85×158mm |
| Channels | 2 |
| Total output (W) | 6 |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
