Light controllers

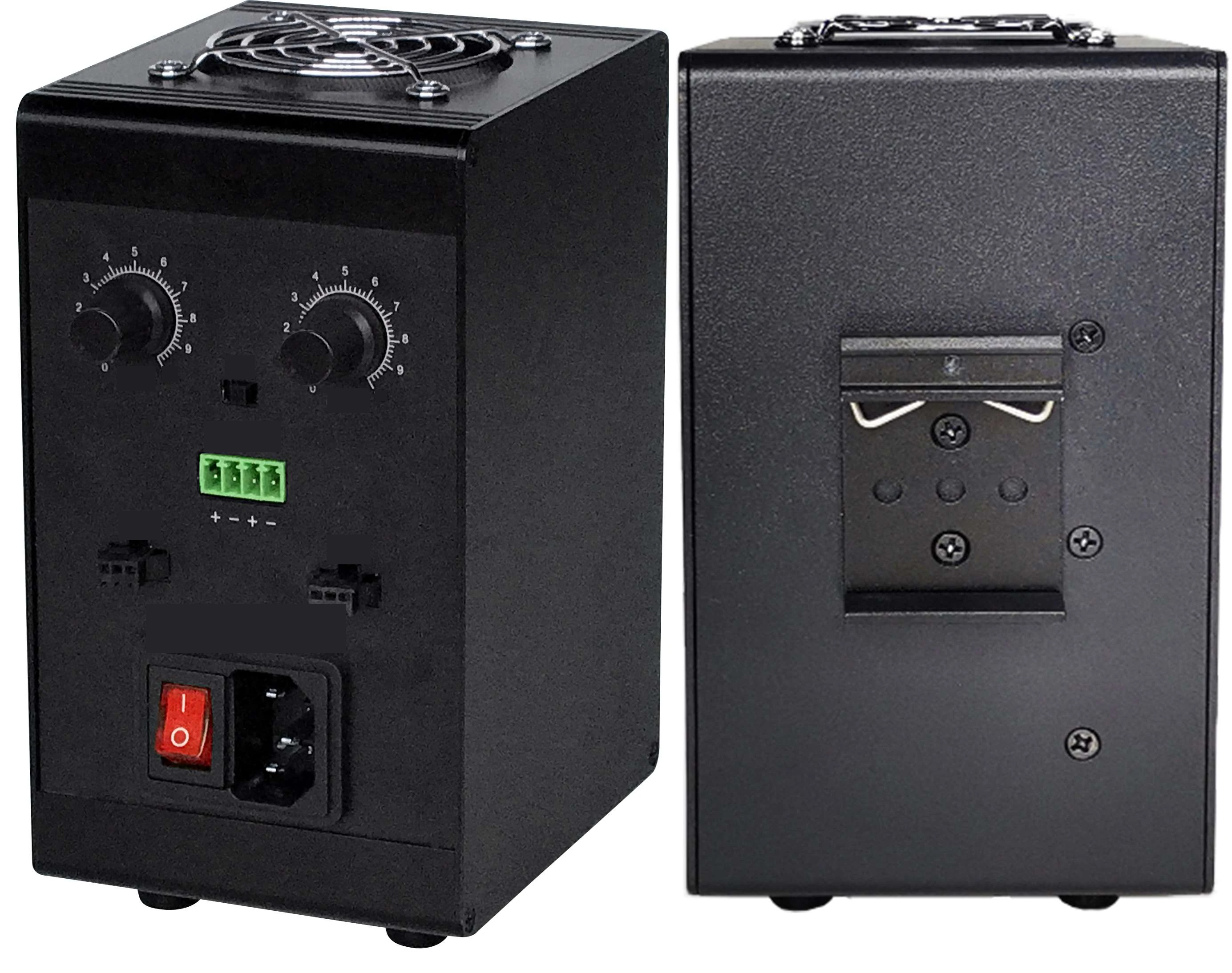

Two / four channel standard analog controller (ACS2.0 series), 2 ch, 120 W (LS-ACS2.0-2C060W-24PS)
Model LS-ACS2.0-2C060W-24PS
Second generation standard analog constant-current controller with 2 or 4 channels, brightness adjusted by potentiometer (electrodeless), passive external trigger, 100-220VAC input. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
Features
- Exquisite appearance
- Easy installation
- Add guide buckle (DIN rail clip)
- Easy operation
- Operation panel front
- Noiseless fan
- High power
- Strong heat dissipation
- Constant current stable output/no strobe
- Electrodeless brightness adjustment by potentiometer
Specifications
| Model | LS-ACS2.0-2C060W-24PS |
|---|---|
| Control mode | Constant current |
| Input voltage | 100-220VAC |
| Output voltage range | DC14V~24V |
| Adjust brightness level range | Electrodeless (adjust by potentiometer) |
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger) |
| External trigger frequency | <1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz) |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Stand-by power consumption | <3W |
| Boundary dimension (mm) | 135x85x158mm (LxWxH) |
| Weight | 0.9Kg |
| Channel | 2 |
| Power/CH | 60W |
| Output voltage | 24V |
| External trigger | yes |
| Total power | 120W |
| Channels | 2 |
| Total output (W) | 120 |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
