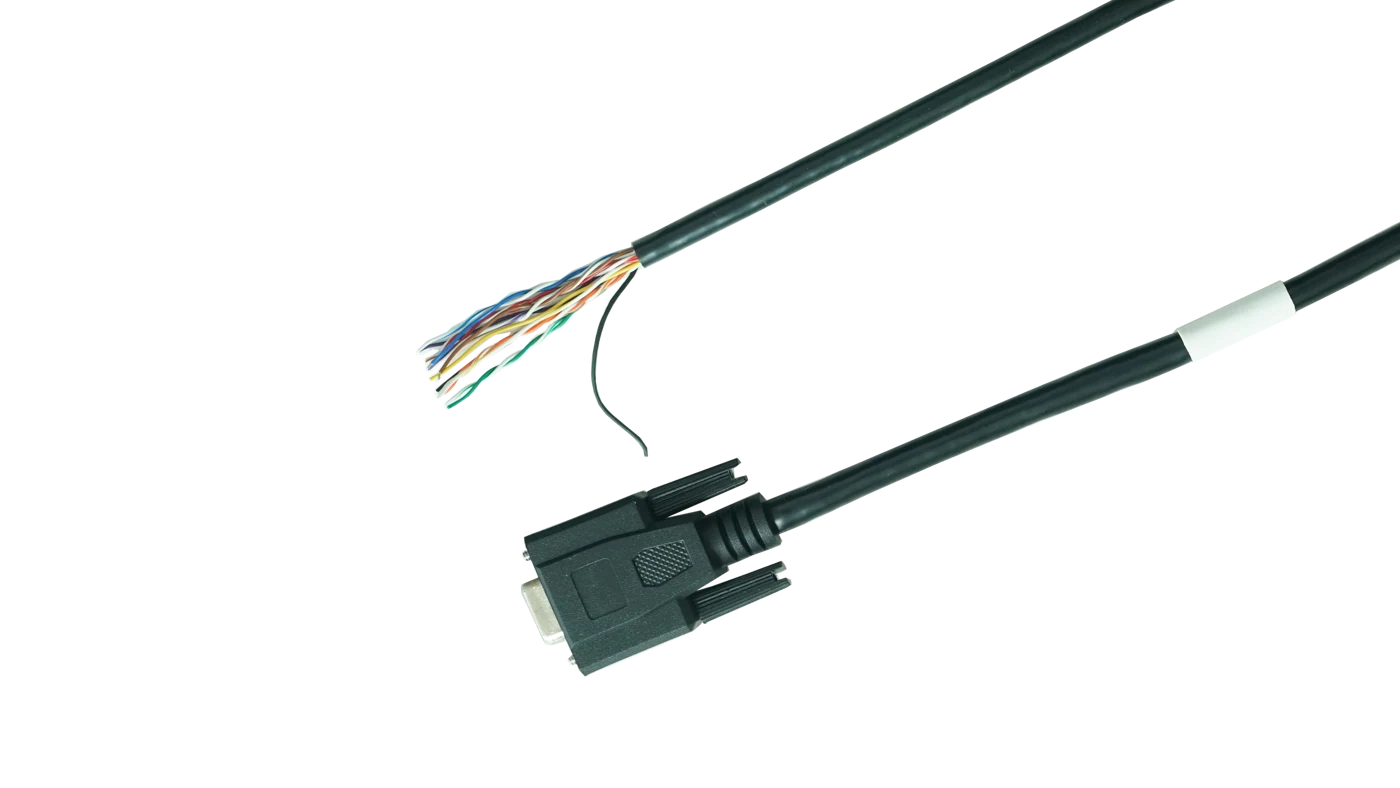

Frame Grabber I/O Cable, DB15F, Female to Open, 7 m (LS-ACP-DB15F-OPEN-ST-EMC-7M)
Model LS-ACP-DB15F-OPEN-ST-EMC-7M
Frame Grabber I/O Cable, DB15F, Female to Open, 7 m. Standard frame grabber I/O trigger cable (DB15F to open leads) for I/O trigger signal wiring on frame grabbers with DB15M connectors; shielded, available in multiple lengths
Features
- Standard frame grabber I/O trigger cable (DB15F to open leads) for I/O trigger signal wiring on frame grabbers with DB15M connectors; shielded, available in multiple lengths
Specifications
| Model | LS-ACP-DB15F-OPEN-ST-EMC-7M |
|---|---|
| End A connector | DB15F, Female |
| End B connector | Open |
| Cable diameter | 6.5 mm |
| Length | 7 m |
| Cable mechanical | UL20276 (26AWG*7P+26AWG*1C+AB) |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C ~ 80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Frame grabber I/O cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-ACP-TJC8X7-FL-0.6M | 0.6 m | $39.00 | 2 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-3M | 3 m | $49.00 | 2 in stock | View |
| LS-ACP-DB15F-OPEN-ST-EMC-3M | 3 m | $49.00 | 5 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-3M | 3 m | $49.00 | 5 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-5M | 5 m | $59.00 | 2 in stock | View |
| LS-ACP-DB15F-OPEN-ST-EMC-5M | 5 m | $59.00 | 2 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-5M | 5 m | $59.00 | 3 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-7M | 7 m | $69.00 | 5 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-7M | 7 m | $69.00 | 5 in stock | View |
| LS-ACP-DB15F-OPEN-ST-EMC-10M | 10 m | $89.00 | 3 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-10M | 10 m | $89.00 | 2 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-10M | 10 m | $89.00 | 4 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-15M | 15 m | $119.00 | 4 in stock | View |
| LS-ACP-MINIDP20M-OPEN-ST-EMC-20M | 20 m | $149.00 | 3 in stock | View |
