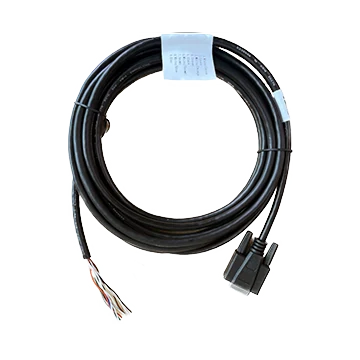

Frame Grabber I/O Cable, DB9F to Open, 7 m (LS-ACP-DB9F-OPEN-ST-EMC-7M)
Model LS-ACP-DB9F-OPEN-ST-EMC-7M
Frame Grabber I/O Cable, DB9F to Open, 7 m. The Frame Grabber Standard I/O Cable (DB9F to Open) can be used for I/O signal wiring of the frame grabber with DB9M interface. The cable is equipped with shielding protection, and is available in a variety of lengths.
Features
- The Frame Grabber Standard I/O Cable (DB9F to Open) can be used for I/O signal wiring of the frame grabber with DB9M interface. The cable is equipped with shielding protection, and is available in a variety of lengths.
Specifications
| Model | LS-ACP-DB9F-OPEN-ST-EMC-7M |
|---|---|
| End A connector | DB9F |
| End B connector | Open |
| Cable diameter | 6.5 mm |
| Length | 7 m |
| Cable mechanical | UL20276 (26AWG*4P+26AWG*1C+AB) |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scene |
| Max. voltage | 30 VDC |
| Working temperature | -20°C ~ 80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Frame grabber I/O cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-ACP-TJC8X7-FL-0.6M | 0.6 m | $39.00 | 2 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-3M | 3 m | $49.00 | 2 in stock | View |
| LS-ACP-DB9F-OPEN-ST-EMC-5M | 5 m | $59.00 | 2 in stock | View |
