Machine vision lenses

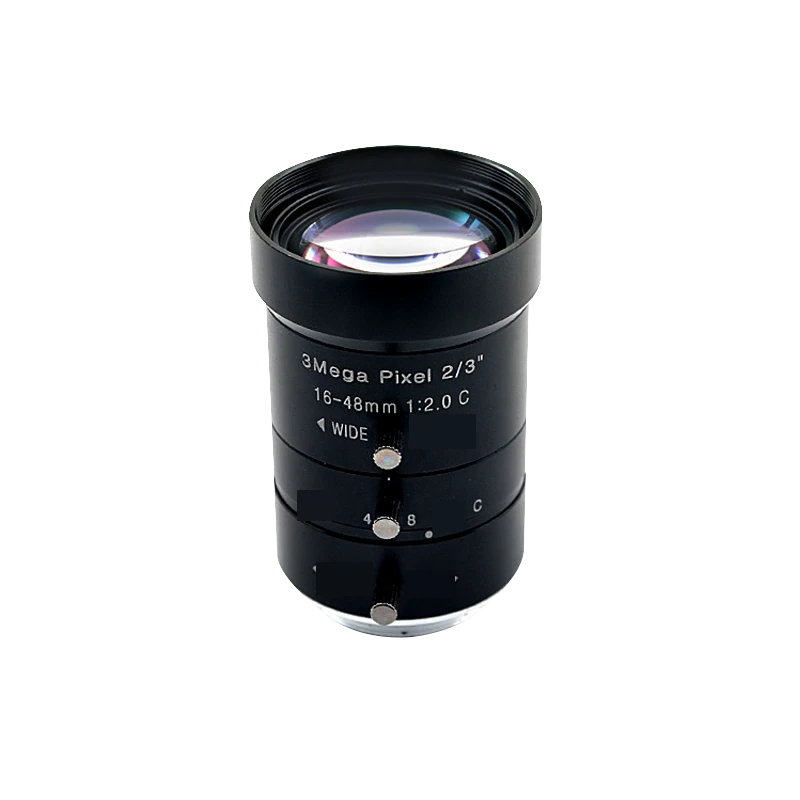

Zoom lens (HF-xxxxC), 16-48 mm, 2/3", C-mount (LS-1648C)
Model LS-1648C
Zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle.
Features
- Image Format: 1/2.3".
- MTF: 3Mega Pixel.
- Focal Length: 8-50mm.
- High contrast and excellent imaging effects.
- Suitable for various industrial inspection, microscopic imaging and visual positioning and other fields.
Specifications
| Model | LS-1648C |
|---|---|
| MTF | 3MP |
| Focal Length | 16-48mm |
| Image Format | 2/3" |
| Max.Aperture Ration | F2.0 |
| Iris Type | Manual |
| Mount | C |
| Type | Zoom Lens |
| MTF (product page) | 3Mega Pixel |
| D/fˊ | F2.0 |
| Mount (product page) | C-Mount |
| F.O.V (D/H/V) | 29.5-9.5 degree |
| Back Focal Length | 17.53mm |
| Optical | Manual/locked |
| M.O.D (m) | 0.20m |
| Dimension | dia. 37.5*54 |
| Weight (g) | 128.0g |
| Distortion | — |
| Structure | Aluminum alloy (anode black)+12G |
| Remarks | — |
| Sensor format | 2/3" |
| Resolution (MP) | 3 |
| Field of view | 29.5-9.5 degree |
