Machine vision lenses

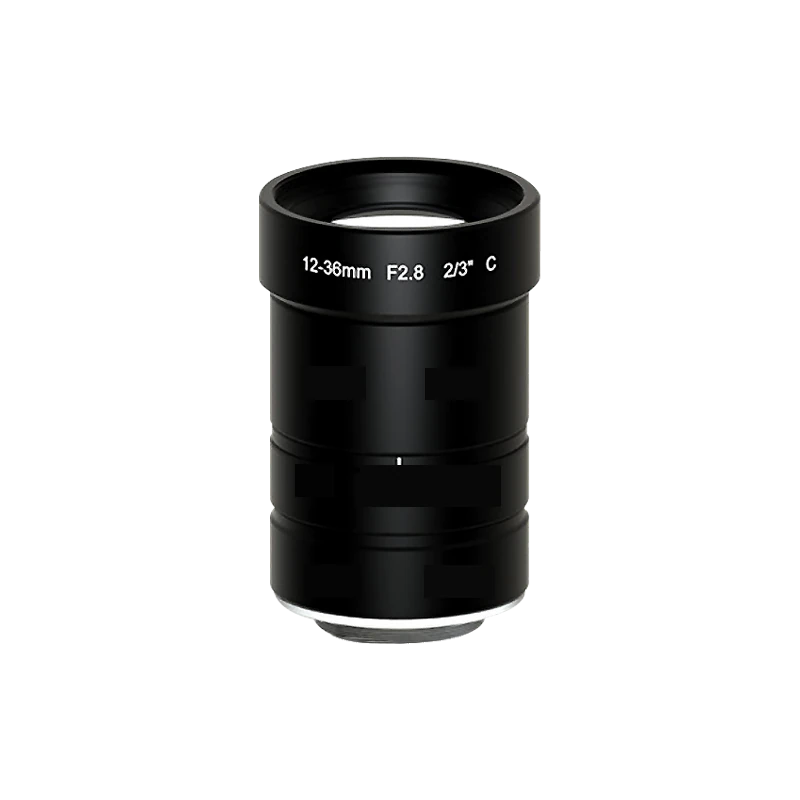

Zoom lens (HF-xxxxC), 12-36 mm, 2/3", C-mount (LS-1236C)
Model LS-1236C
Zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle.
Features
- Image Format: 1/2.3".
- MTF: 3Mega Pixel.
- Focal Length: 8-50mm.
- High contrast and excellent imaging effects.
- Suitable for various industrial inspection, microscopic imaging and visual positioning and other fields.
Specifications
| Model | LS-1236C |
|---|---|
| MTF | 5MP |
| Focal Length | 12-36mm |
| Image Format | 2/3" |
| Max.Aperture Ration | F2.8~F16 |
| Iris Type | Manual |
| Mount | C |
| Focal Length (product page) | 12mm / 36mm |
| D/fˊ | F2.8~F16 |
| Focus Range | 0.1m~Inf. / 0.15m~Inf. |
| Filter Size | M35.5,P=0.5mm |
| FOV(D×H×V) 2/3" | 49.2°x40.3°x30.8° / 17.4°x13.9°x10.5° |
| FOV(D×H×V) 1/1.8" | 40.5°x33.0°x24.9° / 14.0°x11.3°x8.4° |
| FOV(D×H×V) 1/2" | 36.9°x29.9°x22.2° / 12.7°x10.2°x7.6° |
| CRA | ≤ 7° / ≤ 3° |
| TV Distortion | 0.32% / -0.08% |
| Mount (product page) | C-Mount |
| Operation Focus | Manual |
| Operation Zoom | Manual |
| Dimensions | M37x63.0mm |
| Weight | 107g±2g |
| Operating Temperature | 20°~60° |
| Sensor format | 2/3" |
| Resolution (MP) | 5 |
