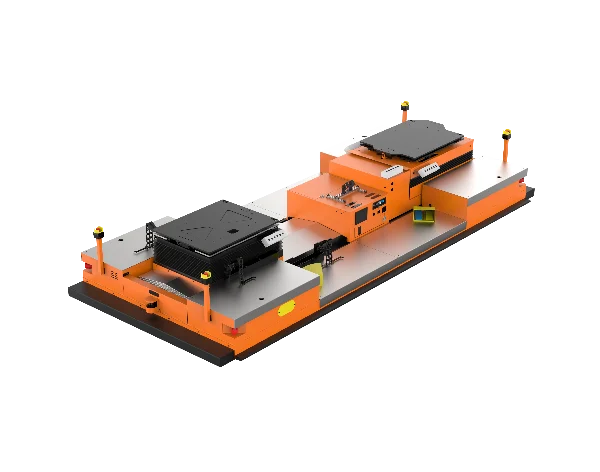

Hikrobot HPM10-3000A Heavy-Load Mobile Robot

Mobile robots

Hikrobot HPM10-3000A Heavy-Load Mobile Robot

Model HPM10-3000A

Hikrobot HPM10-3000A heavy-load mobile robot. High payload and high precision

Price on request
5200.00 kg shipping weight · Lead time on request
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Specifications

ModelHPM10-3000A
BrandHikrobot
Rated Load (kg)3000
Rated speed (m/s)1.0
NavigationColor tape / QR code / LSLAM / VSLAM
Rated acceleration (m/s²)0.3
Rotation diameter (mm)5716
Obstacle avoidance180° laser obstacle avoidance
Dimensions L × W × H (mm)5300 × 2300 × 845
Lifting methodElectric lift
Weight (kg)5200
Stop angle accuracy (°)±1
Stop position accuracy (mm)±10
Rated runtime (h)8
ShippingFreight, quoted with the order
